Front body I for APRILIA SR AIR from 1997

Front body I

1

Blue front fairing windshield

AP8249698

Not Available

1

Blue front fairing windshield

AP8238345

Not Available

2

Plaque guidon noir met.

AP8249879

$24,14 Unit Price incl. VAT

2

Plaq.guid.Gris Mét.;

AP8248147

$24,14 Unit Price incl. VAT

3

Screw w/ flange M5x12

AP8152302

Not Available

4

Dashboard panel, Aprilia blue

AP8239320

Not Available

4

Dashboard panel, solid azure

AP8239826

Not Available

4

Dashboard panel, chr.yellow

AP8239838

Not Available

4

Dashboard panel, m.wh./b.gr.

AP8248857

Not Available

4

Dashboard panel, cyber blue

AP8248818

Not Available

4

Dashboard panel, red

AP8238454

Not Available

4

Dashboard panel, eb.black

AP8249543

Not Available

4

Support hot red;

AP8249554

$66,20 Unit Price incl. VAT

4

Dashboard panel, yellow

AP8258238

Not Available

4

Dashboard panel, el.blue

AP8249711

Not Available

5

Base tête, grise;

AP8238344

$33,81 Unit Price incl. VAT

5

Base tête n.métal

AP8248653

$33,81 Unit Price incl. VAT

5

Under dash, blue

AP8248800

Not Available

6

Vis taraud pour plast. Inox

AP8150413

$0,08 Unit Price incl. VAT

7

Sup.poussoirs D n;

AP8238748

$6,30 Unit Price incl. VAT

8

LH pushb.black supp.

AP8238749

Not Available

9

Vis taraud pour plast. Inox

AP8150420

$3,65 Unit Price incl. VAT

10

Caoutchouc avec insert

AP8120531

$6,30 Unit Price incl. VAT

11

Rubber spacer

AP8220219

Not Available

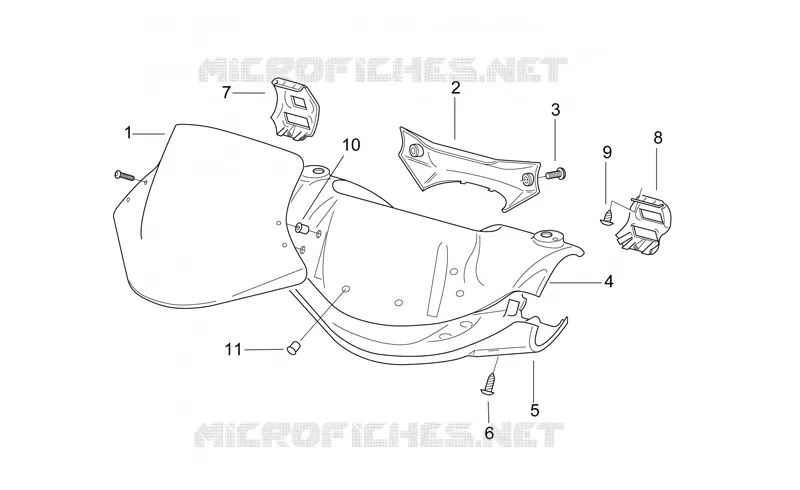

Find the detailed Front body I APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
