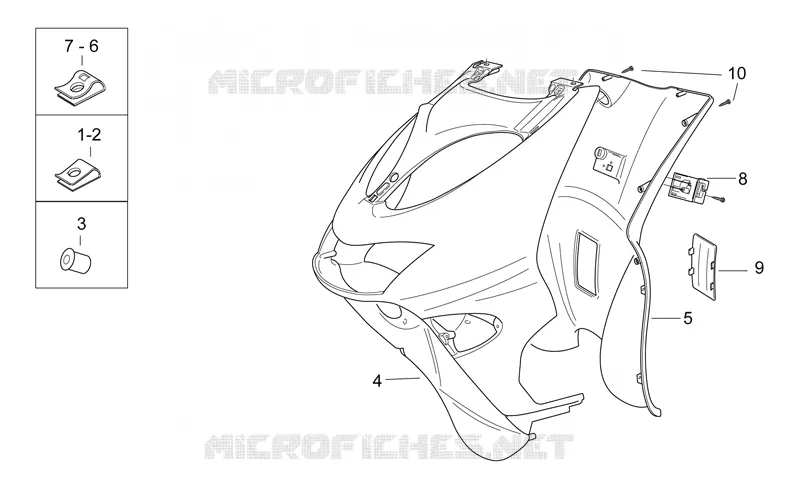

Front body III FOR SR AIR FROM 2000

Front body III

1

Screw clip D5,5*

AP8201763

$3,65 Unit Price incl. VAT

2

Screw clip D4,2

AP8102782

Not Available

3

Rubber w/ insert

AP8120531

$6,30 Unit Price incl. VAT

4

Front shield, hot red+dec.

AP8249548

Not Available

4

Front shield, blue+decal

AP8239316

Not Available

4

Front shield, el.blue

AP8249927

Not Available

4

Front shield, yellow+decal

AP8239835

Not Available

4

Front shield, l.white+decal

AP8248851

Not Available

4

Front shield, blue+decal

AP8239388

Not Available

4

Front shield, yellow+decal

AP8258235

Not Available

4

Front shield, e.black+decal

AP8249536

Not Available

4

Front shield, red+decal

AP8238455

Not Available

4

Front shield, cy.blue+decal

AP8248812

Not Available

4

Front shield, red+decal

AP8249289

Not Available

4

Front shield, hot red+dec.

AP8258039

Not Available

4

Front shield, el.blue+decal

AP8249712

Not Available

4

Front shield, azure+decal

AP8239819

Not Available

5

Internal shield, met.black

AP8248656

$31,97 Unit Price incl. VAT

5

Internal shield, blue

AP8248803

Not Available

5

Internal shield, grey

AP8238362

Not Available

6

Clip M6

AP8102376

Not Available

7

Clip M5

AP8102375

$0,69 Unit Price incl. VAT

8

Undersaddle hook cpl.

AP8258034

$6,30 Unit Price incl. VAT

9

Type appr.data cover, black

AP8248657

Not Available

9

Type appr.data cover, blue

AP8248804

Not Available

9

Type appr.data cover, grey

AP8238675

$5,38 Unit Price incl. VAT

10

Self-tap screw 3,9x14

AP8150413

$0,08 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
