1
Engine displacement
50
2
Model
SR
3
Year
2001
4
Trim
SR AIR
5
Parts Catalog

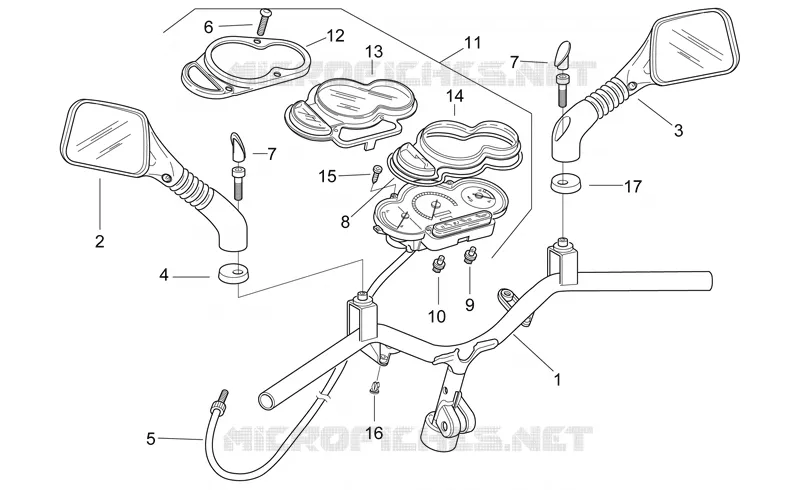

Handlebar - Dashboard
6
Parts Diagram
Parts Catalog
Rear body III
by
Controls I
Handlebar - Dashboard
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
1
Handlebar w phor ctng.
AP8218210
$127,12 Unit Price incl. VAT
2
LH rearview mirror
AP8201836
Not Available
2
LH rearview mirror
AP8201976
Not Available
3
RH rearview mirror
AP8201835
Not Available
3
RH rearview mirror
AP8201975
$43,20 Unit Price incl. VAT
4
LH mirror rubber
AP8220454
$10,00 Unit Price incl. VAT
5
Odometer cable
AP8214163
$14,18 Unit Price incl. VAT
6
Spec. self-tap screw 3,5x20
AP8221242
$3,65 Unit Price incl. VAT
7
RH + LH rearview mirror plug
AP8201818
$17,02 Unit Price incl. VAT
7
RH + LH rearview mirror plug
AP8202071
$4,32 Unit Price incl. VAT
8
Dashboard lens seal
AP8220422
Not Available
9
Lampholder, complete 12V-1,2W
AP8212407
$20,60 Unit Price incl. VAT
10
Lampholder, complete
AP8212408
$5,38 Unit Price incl. VAT
11
Dashboard complete
AP8212793
Not Available
11
Dashboard complete -exp-
AP8212899
Not Available
12
Fascia panel w/out lenses
AP8212881
Not Available
13
Dashboard lens prot.
AP8212873
Not Available
14
Lighting shield, yellow
AP8212930
Not Available
15
Self-tap screw 2,9x12
AP8150421
$3,70 Unit Price incl. VAT
16
Plastic rivet
AP8102671
$0,16 Unit Price incl. VAT
17
RH mirror rubber
AP8220453
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
