Front body III for SR H2O (Ditech E2) from 2002

Front body III

1

Front shield, grey+decal

AP8258549

Not Available

1

Front shield, black

AP8258809

Not Available

1

Front shield, black

AP8258781

Not Available

1

Front shield, red

AP8258843

Not Available

1

Front shield, A.white

AP8268244

$441,27 Unit Price incl. VAT

1

Front shield, black

AP8258822

Not Available

1

Front shield, diablo black+dec

AP8258482

Not Available

1

Front shield, red

AP8258829

Not Available

1

Front shield, grey

AP8268218

Not Available

1

Front shield, red

AP8268203

Not Available

1

Front shield, Ap. black

AP8268271

Not Available

1

Front shield, blue

AP8258700

Not Available

2

Internal shield, met.black

AP8248656

$31,97 Unit Price incl. VAT

3

Screw clip D5,5*

AP8201763

$3,65 Unit Price incl. VAT

4

Screw clip D4,2

AP8102782

Not Available

5

Undersaddle hook cpl.

AP8258034

$6,30 Unit Price incl. VAT

6

Type appr.data cover, black

AP8248657

Not Available

7

Self-tap screw 3,9x14

AP8150413

$0,08 Unit Price incl. VAT

8

Rubber w/ insert

AP8120531

$6,30 Unit Price incl. VAT

9

Clip M5

AP8102375

$0,69 Unit Price incl. VAT

10

Clip M6

AP8102376

Not Available

11

RH air intake, met.black

AP8249713

$108,36 Unit Price incl. VAT

12

LH air intake, met.black

AP8249715

$108,36 Unit Price incl. VAT

13

Screw w/ flange M5x16

AP8152298

$0,21 Unit Price incl. VAT

14

Screw w/ flange M5x12

AP8152302

Not Available

15

Front fork lower closing

AP8217034

Not Available

16

Plastic rivet

AP8220471

$5,38 Unit Price incl. VAT

17

Water cooler grille support

AP8234194

$7,23 Unit Price incl. VAT

18

Washer 6,6x18*

AP8150179

$0,08 Unit Price incl. VAT

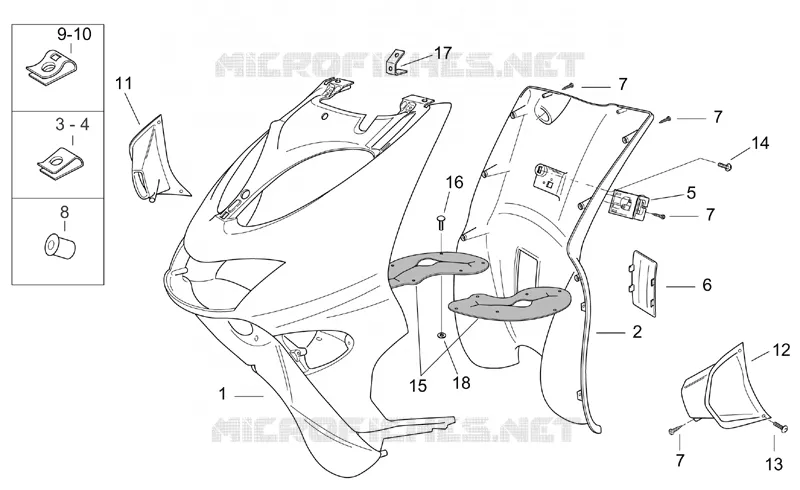

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
