Engine displacement
50
2
Model
SR
3
Year
2002
4
Trim
SR H2O (Ditech E2)
5
Parts Catalog
Central body I
6
Parts Diagram
Parts Catalog
Saddle - Handle
by
Crank-case (Ditech)
Central body I
1
2
2
3
4
5
6
7
1
Clip M6
AP8102376
Not Available
2
Screw 5,5x22*
AP8150425
$3,65 Unit Price incl. VAT
3
RH Tunnel, black
AP8249764
Not Available
3
RH grey tunnel
AP8258559
Not Available
3
RH Tunnel, gold
AP8258787
Not Available
4
LH Tunnel, gold
AP8258788
Not Available
4
LH Tunnel, black
AP8258169
Not Available
4
LH grey tunnel
AP8258560
$33,81 Unit Price incl. VAT
5
Tool kit box
AP8258998
$6,30 Unit Price incl. VAT
6
Screw clip D5,5*
AP8201763
$3,65 Unit Price incl. VAT
7
Adhesive sponge 6x30
AP8117041
$5,38 Unit Price incl. VAT

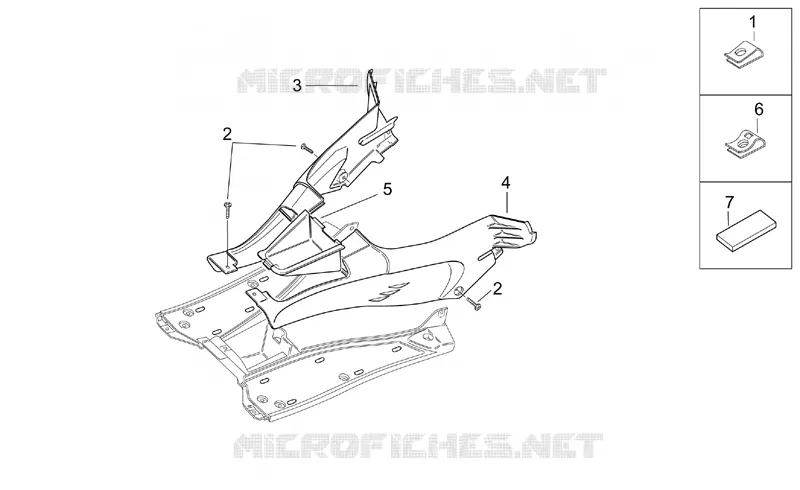

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
