Engine displacement
50
2
Model
SR
3
Year
2002
4
Trim
SR H2O (Ditech E2)
5
Parts Catalog
Electrical system
6
Parts Diagram
Parts Catalog
RH controls
by
Acc. - Mechanics anti-theft
Electrical system
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
stop Button
AP8127305
Not Available
2
Flasher unit
AP8124235
$14,18 Unit Price incl. VAT
3
Resistence with harness
AP8224170
$7,69 Unit Price incl. VAT
4
Starter relay
AP8224057
$10,00 Unit Price incl. VAT
5
Relay 12V-30A
AP8224462
$14,17 Unit Price incl. VAT
6
Battery
AP8124637
Not Available
7
Voltage regulator
AP8224296
Not Available
8
Horn
AP8212611
$9,50 Unit Price incl. VAT
9
Main wiring harness
AP8224491
Not Available
9
Main wiring harness
AP8224248
Not Available
10
Diode
AP8212382
$5,38 Unit Price incl. VAT
11
Self-locking nut M6
AP8152299
$0,34 Unit Price incl. VAT
12
Screw w/ flange M6x16
AP8152278
$1,77 Unit Price incl. VAT
13
Relay rubber
AP8220546
$4,62 Unit Price incl. VAT
14
Fuse cable
AP8224073
$76,85 Unit Price incl. VAT
15
Rubber fuse box
AP8112811
$6,40 Unit Price incl. VAT
16
Rubber fuse box
AP8120754
$6,30 Unit Price incl. VAT
17
Fuse 15A
AP8112176
$5,38 Unit Price incl. VAT
18
Fuse
AP8124857
Not Available
19
Clip M5
AP8102375
$0,69 Unit Price incl. VAT
20
Rubber spacer *
AP8220283
$0,75 Unit Price incl. VAT
21
Injection wiring
AP8127477
$110,21 Unit Price incl. VAT
22
Sensor support
AP8234210
Not Available
23
Pressure sensor
AP8224478
$95,29 Unit Price incl. VAT
24
T bush
AP8121811
$3,38 Unit Price incl. VAT

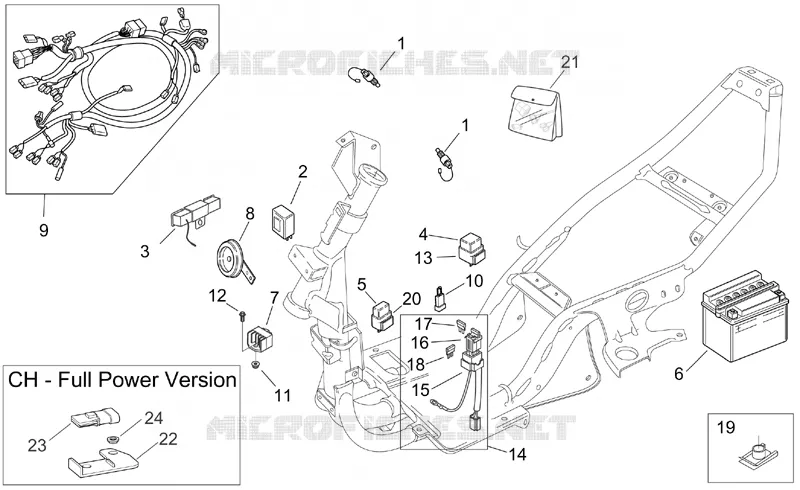

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
