Engine displacement
50
2
Model
SR
3
Year
2002
4
Trim
SR H2O (Ditech E2)
5
Parts Catalog
Rear lights
6
Parts Diagram
Parts Catalog
Central body II
by
Front brake caliper
Rear lights
1
1
2
3
4
4
5
5
6
7
8
9
9
10
10
11
12
12
13
14
15
16
17
18
19
19
1
Turn indicator lens
AP8224346
$6,35 Unit Price incl. VAT
2
Rear RH turn indicator
AP8224340
Not Available
3
Rear LH turn indicator
AP8224341
$12,69 Unit Price incl. VAT
4
Front turn indicator harness
AP8212698
$7,69 Unit Price incl. VAT
5
screw 2,9x25
AP8224268
Not Available
6
White self-tap scrw 3,9x16
AP8212934
Not Available
7
Window
AP8212933
Not Available
8
Taillight wiring harn.
AP8212775
Not Available
9
Taillight
AP8224245
Not Available
10
Internal cup
AP8224347
Not Available
11
Hex socket screw
AP8150280
$3,65 Unit Price incl. VAT
11
Hex socket screw M6x50
AP8150202
$3,65 Unit Price incl. VAT
12
Self-locking nut M6
AP8152299
$0,34 Unit Price incl. VAT
12
Self-locking nut M5
AP8152306
$3,65 Unit Price incl. VAT
13
Self-tap screw 3,9x14
AP8150413
$0,08 Unit Price incl. VAT
14
Number-plate light
AP8224196
Not Available
15
Taillight wiring harn.
AP8127002
Not Available
16
Lamp P21/5W 12V
AP8224389
Not Available
17
Lamp WY5W 12V
AP8224393
Not Available
18
Lamp R10W 12v
AP8224390
Not Available
19
Turn indicators extension
AP8149302
Not Available

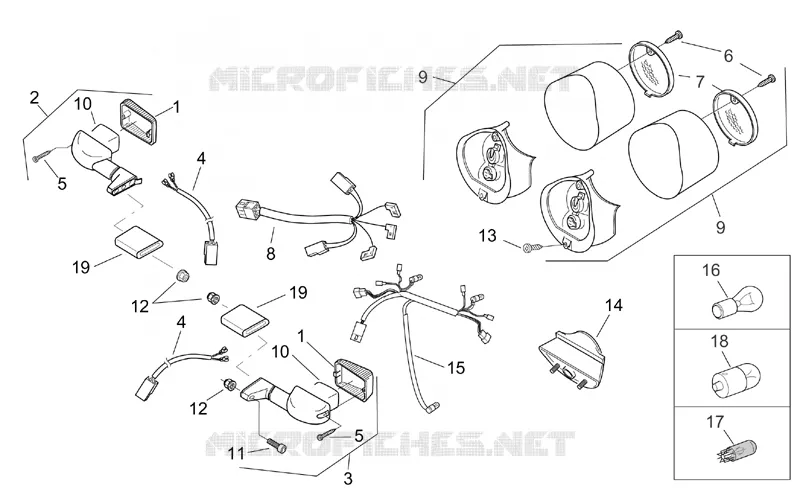

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
