Rear wheel - disc brake for APRILIA SR H2O (IE+Carb.) from 2009

Rear wheel - disc brake

1

Tyre

0000000

Not Available

2

Rear wheel Grey/GoldSand

AP8208898

Not Available

2

Rear wheel Gold

AP8208895

Not Available

2

Rear wheel Grey/RifleTub

AP8208900

Not Available

2

Rear wheel Grey/RifleTube

AP8208843

Not Available

2

Roue arrière nue

AP8208856

$71,45 Unit Price incl. VAT

2

Rear wheel Gold

AP8208814

Not Available

2

Roue arrière nue

853010

$165,95 Unit Price incl. VAT

3

Disque frein

AP8213519

$97,40 Unit Price incl. VAT

4

Vis TE spéciale

AP8152504

$3,65 Unit Price incl. VAT

5

Soupape tubeless;

AP8201546

$5,38 Unit Price incl. VAT

6

Pads pair

AP8213506

Not Available

6

Plaquettes-paire

AP8213577

$66,15 Unit Price incl. VAT

7

Pince frein AR or

AP8213557

$169,68 Unit Price incl. VAT

7

Rear brake caliper, gold D30

AP8213522

Not Available

7

Rear brake caliper, black D30

AP8213529

Not Available

8

Capuchon reniflard

AP8213575

$5,38 Unit Price incl. VAT

8

Capuchon reniflard

AP8113005

$5,38 Unit Price incl. VAT

9

Purge air

AP8113006

$24,59 Unit Price incl. VAT

9

Purge air

AP8213574

$7,69 Unit Price incl. VAT

10

Rondelle

AP8113004

$0,34 Unit Price incl. VAT

11

Rear brake hose

AP8213521

Not Available

12

Rear wheel nut

AP8125802

Not Available

13

Rear wheel plug

AP8208857

Not Available

13

Rear wheel plug

AP8225383

Not Available

13

Bouchon roue arrière

AP8225392

$3,45 Unit Price incl. VAT

14

Vis tuyau huile

AP8113003

$3,65 Unit Price incl. VAT

15

Plaquette tuyau frein;

AP8134167

$1,49 Unit Price incl. VAT

16

Ring

AP8125803

Not Available

17

Goujon+ressort pince

AP8213578

$19,85 Unit Price incl. VAT

17

Goujon+ressort pince;

AP8113871

$11,77 Unit Price incl. VAT

18

Brake caliper rev. kit

AP8213457

Not Available

18

Kit révision pince

AP8213579

$47,65 Unit Price incl. VAT

19

Vis bride

AP8152277

$0,25 Unit Price incl. VAT

20

Vis bride

AP8152288

$1,70 Unit Price incl. VAT

21

Rear clutch

AP8225393

Not Available

22

Goupille

AP8101747

$0,05 Unit Price incl. VAT

23

Cap

AP8125801

Not Available

24

Vis

AP8150086

$3,65 Unit Price incl. VAT

25

Rondelle

AP8150020

$0,08 Unit Price incl. VAT

26

Rondelle élastique courbe

AP8150292

$0,34 Unit Price incl. VAT

27

Ecrou

AP8225319

$12,36 Unit Price incl. VAT

28

Rondelle

AP8225322

$3,65 Unit Price incl. VAT

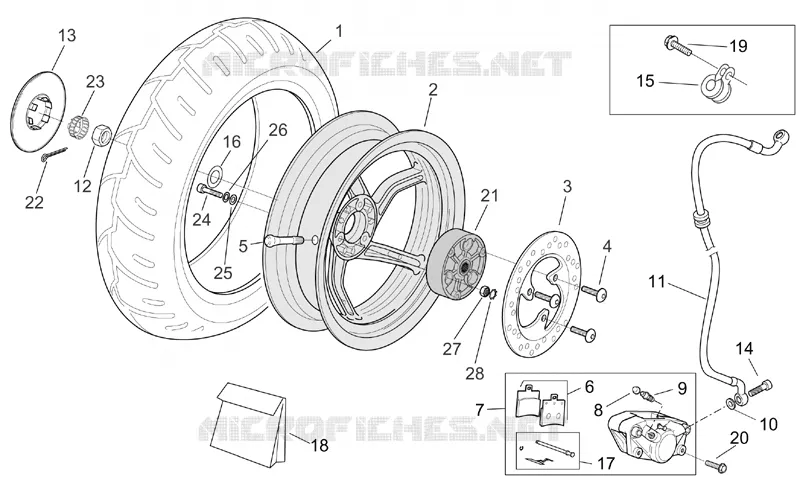

Find the detailed Rear wheel - disc brake APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
