Flywheel - Water pump for SR H2O from 1994

Flywheel cover

AP8206589

Not Available

Spacer D21,9x17,5

AP8206584

$5,90 Unit Price incl. VAT

Bearing D8x22x7

AP8206585

$28,21 Unit Price incl. VAT

Pump impeller drive key

AP8206582

Not Available

Outside circlip D8

AP8501467

$3,65 Unit Price incl. VAT

Pump impeller pin

AP8206577

$7,23 Unit Price incl. VAT

Pump drive pin grommet

AP8206572

Not Available

Washer D6

AP8206192

Not Available

Nut M10x1,25

AP8206183

Not Available

Washer D10,5x18x2

AP8206205

Not Available

Screw M6x16

AP8502563

Not Available

Flyw. stator gasket

AP8206485

Not Available

Cdi magneto assy

AP8206462

Not Available

Outside circlip D19

AP8206179

Not Available

Screw

AP8509211

Not Available

Roller D3x21,8

AP8508669

$3,65 Unit Price incl. VAT

Oil pump drive gear

AP8206746

Not Available

Water pump shaft+Impeller

AP8206576

$23,53 Unit Price incl. VAT

Oil seal D10X18X4

AP8509130

$11,06 Unit Price incl. VAT

Screw M6x25

AP8206508

Not Available

O-ring D53,7x1,78

AP8206586

$3,65 Unit Price incl. VAT

Hose clamp

AP8206583

Not Available

Pump-cylinder hose

AP8206573

Not Available

Water pump casing, grey

AP8206580

Not Available

Flywheel cover

AP8206569

Not Available

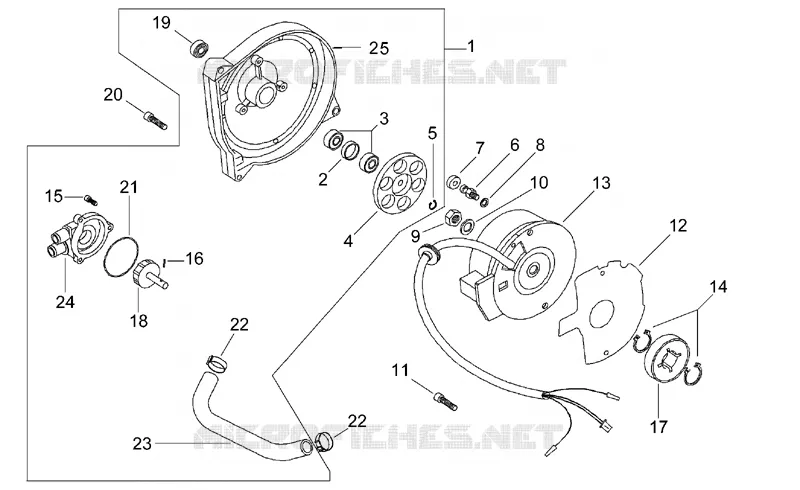

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for SR H2O

APRILIA SR H2O 1994

SR H2O

Model : SR

Engine capacity : 50

Year : 1994
