1
Engine displacement
50
2
Model
SR
3
Year
2000
4
Trim
SR H2O
5
Parts Catalog

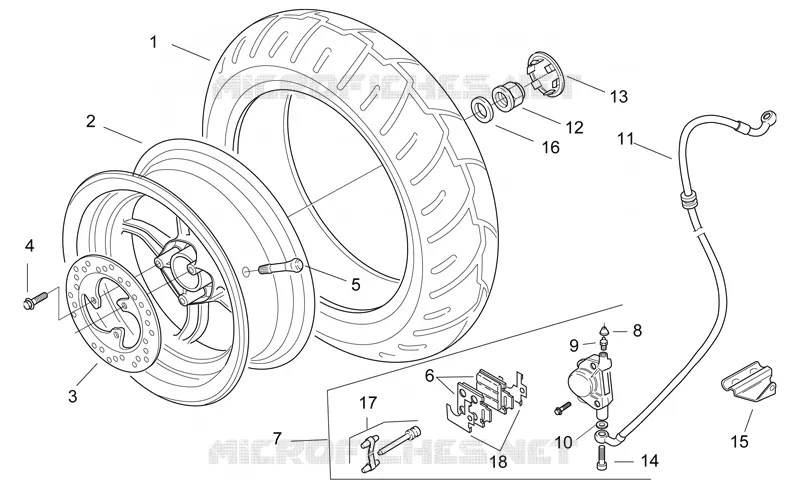

Rear wheel - disc brake
6
Parts Diagram
Parts Catalog
Rear wheel - drum brake
by
Front lights
Rear wheel - disc brake
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
Tyre
0000000
Not Available
2
Rear wheel, silver
AP8208453
Not Available
3
Brake disc D190
AP8213231
$20,52 Unit Price incl. VAT
4
Screw w/ flange M8x30
AP8152288
$1,70 Unit Price incl. VAT
5
Tubeless tyre valve
AP8201546
$5,38 Unit Price incl. VAT
6
Rear pads pair
AP8113663
$65,48 Unit Price incl. VAT
7
Rear brake caliper, red D28
AP8213295
Not Available
7
Front brake caliper, gold D28
AP8213389
$443,11 Unit Price incl. VAT
8
Bleed valve cap
AP8113005
$5,38 Unit Price incl. VAT
9
Air bleed valve
AP8113006
$24,59 Unit Price incl. VAT
10
Washer 10x14x1,6*
AP8113004
$0,34 Unit Price incl. VAT
11
Rear brake hose
AP8213249
Not Available
12
DAX flange nut M14x1,5
AP8152244
$4,36 Unit Price incl. VAT
13
Rear wheel plug
AP8220367
Not Available
14
Oil pipe screw
AP8113003
$3,65 Unit Price incl. VAT
15
Brake hose holder plate
AP8238852
$5,38 Unit Price incl. VAT
16
Spring washer 14,5x24
AP8150471
$3,70 Unit Price incl. VAT
17
Pin
AP8225334
Not Available
18
F.antiwhistle plate-pair
AP8113678
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
