1
Engine displacement
50
2
Model
SR
3
Year
1997
4
Trim
SR H2O
5
Parts Catalog

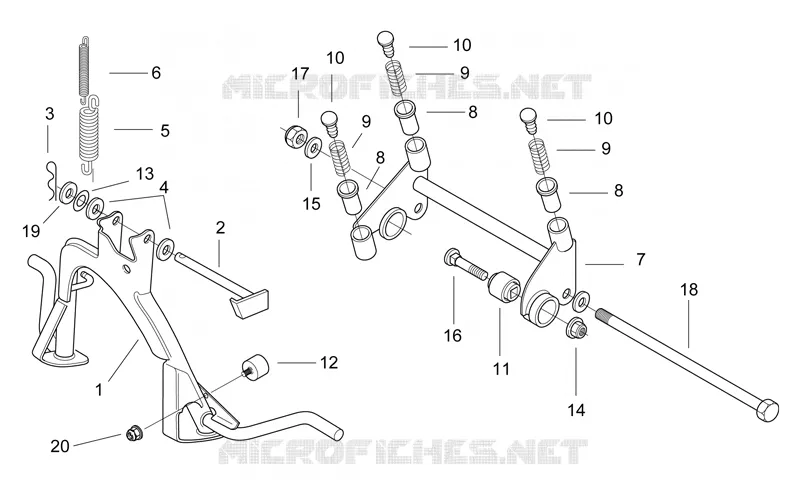

Central stand - Connecting rod
6
Parts Diagram
Parts Catalog
Frame
by
Front fork I
Central stand - Connecting rod
1
2
3
4
5
6
7
8
8
8
9
9
9
10
10
10
11
12
13
14
15
16
17
18
19
20
1
Central stand
AP8232983
Not Available
2
Stand pin with washer
AP8221240
Not Available
3
Split pin *
AP8201431
$5,38 Unit Price incl. VAT
4
Rubber spacer
AP8220366
$4,62 Unit Price incl. VAT
5
Lateral stand spring
AP8221204
$5,45 Unit Price incl. VAT
6
Internal lateral stand spring
AP8221211
$4,86 Unit Price incl. VAT
7
Engine connecting element
AP8232989
Not Available
8
Rubber cup
AP8220356
Not Available
9
Connecting rod spring
AP8221215
Not Available
10
Pin
AP8220396
$5,38 Unit Price incl. VAT
11
Silent-block, connecting rod
AP8220376
Not Available
12
Stand end stop
AP8144030
$6,30 Unit Price incl. VAT
13
Belleville spring
AP8121697
$3,65 Unit Price incl. VAT
14
Self-locking nut
AP8152301
$0,59 Unit Price incl. VAT
15
Washer 12,2x22x2
AP8152018
$3,65 Unit Price incl. VAT
16
Connecting rod pin
AP8221184
$5,38 Unit Price incl. VAT
17
Low self-locking nut M12*
AP8150432
$3,65 Unit Price incl. VAT
18
Pin M12
AP8221160
$6,60 Unit Price incl. VAT
19
Washer 10,5x21x2*
AP8150020
$0,08 Unit Price incl. VAT
20
Self-locking nut M6
AP8152299
$0,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
