Engine displacement
50
2
Model
SR
3
Year
2005
4
Trim
SR H2O NEW (IE+Carb.)
5
Parts Catalog
Oil pump
6
Parts Diagram
Parts Catalog
Transmission final drive
by
Oil tank
Oil pump
1
2
3
4
5
6
6
7
8
9
10
11
1
PASSE CABLES
287021
$2,08 Unit Price incl. VAT
2
ECROU S02010600
020106
$0,08 Unit Price incl. VAT
3
ENGRENAGE CDE MELANG
289262
$0,05 Unit Price incl. VAT
4
COURROIE DENTEE
286162
$4,38 Unit Price incl. VAT
5
PLAQUE
286163
$2,19 Unit Price incl. VAT
6
VIS
015856
$0,16 Unit Price incl. VAT
7
VIS
015585
$0,08 Unit Price incl. VAT
8
Oil pump assy.
82632R
Not Available
8
POMPE HUILE
82605R
$91,57 Unit Price incl. VAT
9
VIS REGLAGE
146197
$0,81 Unit Price incl. VAT
10
TUBE
CM101509
$13,47 Unit Price incl. VAT
11
TUYAU
CM101605
$10,35 Unit Price incl. VAT

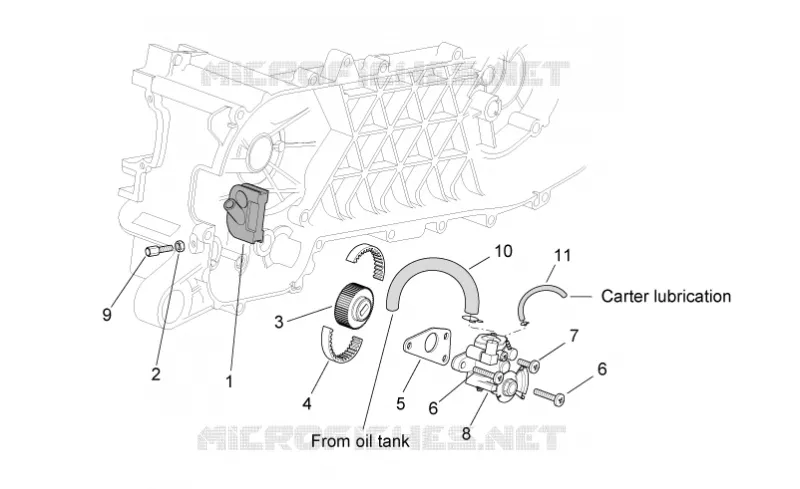

Find the detailed Oil pump APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
