1
Engine displacement
50
2
Model
SR
3
Year
2008
4
Trim
SR H2O NEW (IE+Carb.)
5
Parts Catalog

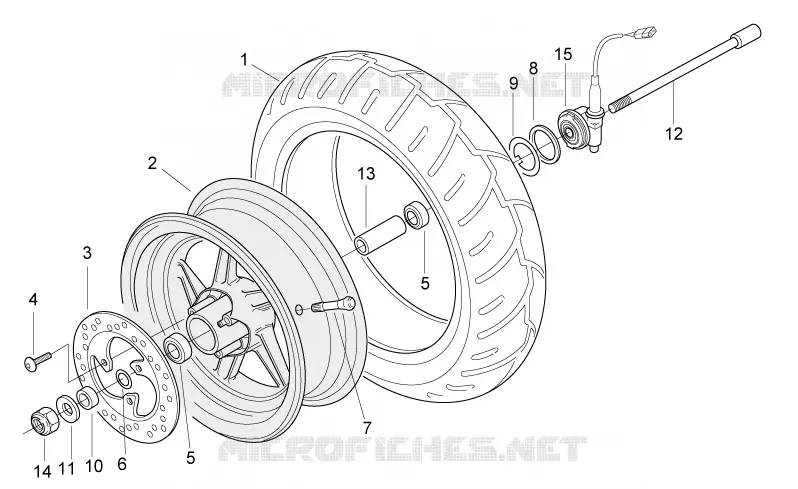

Front wheel
6
Parts Diagram
Parts Catalog
Drive shaft
by
Saddle - Handle
Front wheel
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
1
Front tyre
AP8209085
$152,72 Unit Price incl. VAT
2
Front wheel, black
AP8208947
$287,72 Unit Price incl. VAT
2
Front wheel, blue
AP8208922
Not Available
2
Front wheel, blue
AP8208708
Not Available
2
Front wheel, silver
AP8128216
$150,93 Unit Price incl. VAT
3
Brake disc D190
AP8213231
$20,52 Unit Price incl. VAT
4
Hex socket screw M8x30
AP8152056
$3,65 Unit Price incl. VAT
5
Bearing
AP8225123
$21,37 Unit Price incl. VAT
6
Gasket ring
AP8125782
$18,12 Unit Price incl. VAT
7
Tubeless tyre valve
AP8201546
$5,38 Unit Price incl. VAT
8
Gasket ring D40x50x4
AP8125743
$15,31 Unit Price incl. VAT
9
Drive key
AP8120865
$5,38 Unit Price incl. VAT
10
Front wheel spacer
AP8221119
$3,65 Unit Price incl. VAT
11
Washer 12,2x22x2
AP8152018
$3,65 Unit Price incl. VAT
12
Front wheel spindle
AP8225271
$19,68 Unit Price incl. VAT
13
Front wheel ins.spacer
AP8225323
$8,01 Unit Price incl. VAT
14
Low self-locking nut M12x1,25
AP8150373
$3,65 Unit Price incl. VAT
15
Speed sensor
AP8202403
$44,55 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
