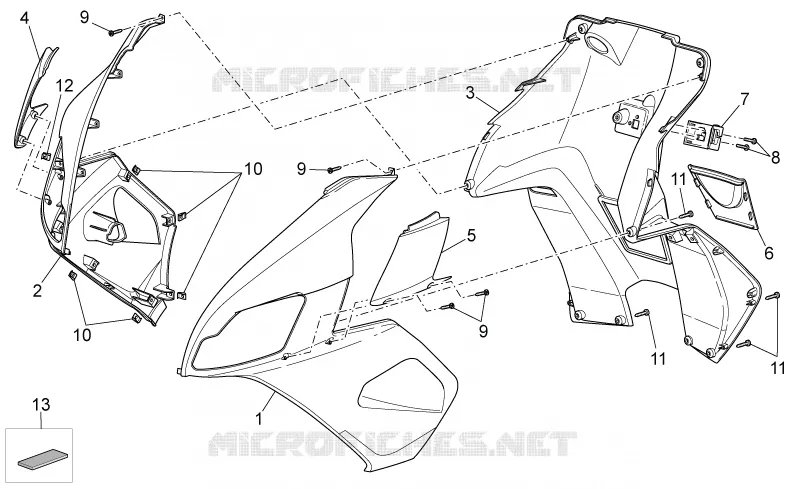

Front body III FOR SR H2O NEW (IE+Carb.) FROM 2008

Front body III

1

LH front fairing, red

AP8268338

Not Available

1

LH front fairing, yellow

AP8268585

Not Available

1

LH front fairing, white

AP8268308

Not Available

1

LH front fairing, orange

AP8268883

Not Available

1

LH front fairing, orange

AP8268296

Not Available

1

LH front fairing, silver

AP8268565

Not Available

1

LH front fairing, green

AP8268981

Not Available

1

LH front fairing, black

AP8268052

Not Available

1

LH front fairing, black

AP8268862

Not Available

1

LH front fairing, red

AP8179904

Not Available

1

LH front fairing, white

AP8268892

Not Available

1

LH front fairing, white

AP8268511

Not Available

1

LH front fairing, black

AP8268575

Not Available

1

LH front fairing, black

AP8269181

$411,91 Unit Price incl. VAT

1

LH front fairing, silver

AP8268870

Not Available

2

RH front fairing, silver

AP8268869

Not Available

2

RH front fairing, green

AP8268980

Not Available

2

RH front fairing, white

AP8268307

Not Available

2

RH front fairing, yellow

AP8268584

Not Available

2

RH front fairing, orange

AP8268882

Not Available

2

RH front fairing, silver

AP8268564

Not Available

2

RH front fairing, white

AP8268891

Not Available

2

RH front fairing, red

AP8268337

Not Available

2

RH front fairing, orange

AP8268295

Not Available

2

RH front fairing, red

AP8179903

Not Available

2

RH front fairing, black

AP8268051

$411,91 Unit Price incl. VAT

2

RH front fairing, black

AP8268574

Not Available

2

RH front fairing, white

AP8268510

Not Available

2

RH front fairing, black

AP8269180

Not Available

2

RH front fairing, black

AP8268861

Not Available

3

Internal shield, black

AP8268055

Not Available

4

RH baffle, red

AP8269189

Not Available

4

RH baffle, black

AP8268048

$5,38 Unit Price incl. VAT

5

LH baffle, red

AP8269190

$5,38 Unit Price incl. VAT

5

LH baffle, black

AP8268053

$5,38 Unit Price incl. VAT

6

Type appr.data cover, black

AP8268082

$5,38 Unit Price incl. VAT

7

Undersaddle hook cpl.

AP8201534

$10,00 Unit Price incl. VAT

8

Screw 4,2x25*

AP8150423

$3,65 Unit Price incl. VAT

9

Self-tap screw 3,9x14

AP8150413

$0,08 Unit Price incl. VAT

10

Clip

AP8202449

$3,65 Unit Price incl. VAT

11

Screw 4,2x16*

AP8152351

$0,17 Unit Price incl. VAT

12

Clip M4

AP8102381

$1,09 Unit Price incl. VAT

13

Adhesive sponge

AP8117073

$15,22 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
