Engine displacement
50
2
Model
SR
3
Year
2009
4
Trim
SR H2O NEW (IE+Carb.)
5
Parts Catalog
Transmission cover
6

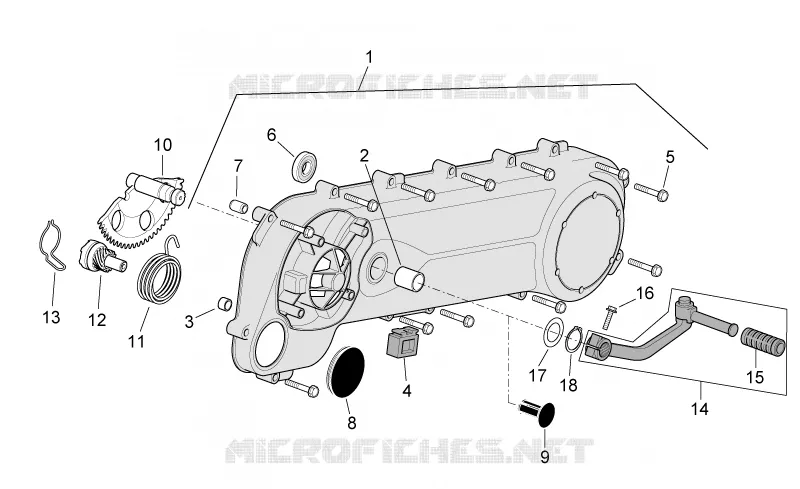

Parts Diagram
Parts Catalog
Fuel tank I
by
Front brake caliper
Transmission cover
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
Transmission cover
8284535
$107,83 Unit Price incl. VAT
1
Transmission cover
8298225
$93,44 Unit Price incl. VAT
2
Bush
286209
$3,70 Unit Price incl. VAT
3
Bush Ø8xØ12x8
431860
$3,70 Unit Price incl. VAT
4
Stand end stop
463872
$0,53 Unit Price incl. VAT
5
screw M6x35
414838
$0,67 Unit Price incl. VAT
6
Bearing
82521R
$9,32 Unit Price incl. VAT
7
Pin 6,5x9,5x15
239388
Not Available
8
Cover
483859
$0,29 Unit Price incl. VAT
9
Cover
829820
$0,81 Unit Price incl. VAT
10
Starting shaft
831458
$14,39 Unit Price incl. VAT
11
Starter lever return spring
289495
$15,81 Unit Price incl. VAT
12
Pinion starter
483537
$8,63 Unit Price incl. VAT
13
Elastic spring
830212
$0,82 Unit Price incl. VAT
14
Starter lever
286214
$22,19 Unit Price incl. VAT
15
Guard
286217
$5,45 Unit Price incl. VAT
16
Screw w/ flange M6x25
414837
Not Available
17
Washer 16,3x23,8
433987
$2,99 Unit Price incl. VAT
18
Circlip
006416
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
