Parts Catalog
Steering
6
Parts Diagram
Parts Catalog
Clutch II
by
Undersaddle
Steering
1
2
3
4
5
6
7
8
8
9
10
10
11
12
13
14
14
14
15
16
17
18
19
20
21
22
23
1
Fork upper plate
AP8163541
Not Available
2
Lower plate
AP8163061
Not Available
2
Lower plate
AP8163122
Not Available
3
Return ring nut
AP8123643
$10,64 Unit Price incl. VAT
4
Ring nut
AP8123642
$10,64 Unit Price incl. VAT
5
Steering security plate
AP8121207
$5,38 Unit Price incl. VAT
6
Upper plate fixing bush
AP8121346
$18,12 Unit Price incl. VAT
7
Dust cover ring
AP8123644
$1,01 Unit Price incl. VAT
8
Dust cover ring
AP8123641
$8,12 Unit Price incl. VAT
9
Stem plug washer
AP8152384
$1,70 Unit Price incl. VAT
9
Stem plug washer
AP8152442
$1,37 Unit Price incl. VAT
10
Axial ball bearing
AP8110077
$37,80 Unit Price incl. VAT
11
Steering shock absorber
AP8163498
$233,75 Unit Price incl. VAT
12
Shock abs. spacer
AP8154024
Not Available
13
Screw w/ flange M6x25
AP8152280
$0,25 Unit Price incl. VAT
14
Screw M8x35
AP8150543
$3,70 Unit Price incl. VAT
14
Hex socket screw M8x35
AP8150236
$0,55 Unit Price incl. VAT
15
Lower U-bolt
AP8118707
Not Available
16
Shock absorber bush
AP8121402
$3,65 Unit Price incl. VAT
17
T bush
AP8121811
$3,38 Unit Price incl. VAT
18
Screw
AP8152311
Not Available
19
Spring washer 6,4x11x0,5*
AP8150429
Not Available
20
Hex socket screw M8x45
AP8150164
$3,65 Unit Price incl. VAT
20
Screw
AP8150563
Not Available
21
Washer 8,4x16x1,6
AP8150017
$3,65 Unit Price incl. VAT
22
Cable-guide
AP8201417
$5,38 Unit Price incl. VAT
23
Upper plate fixing bush
AP8163170
$176,76 Unit Price incl. VAT

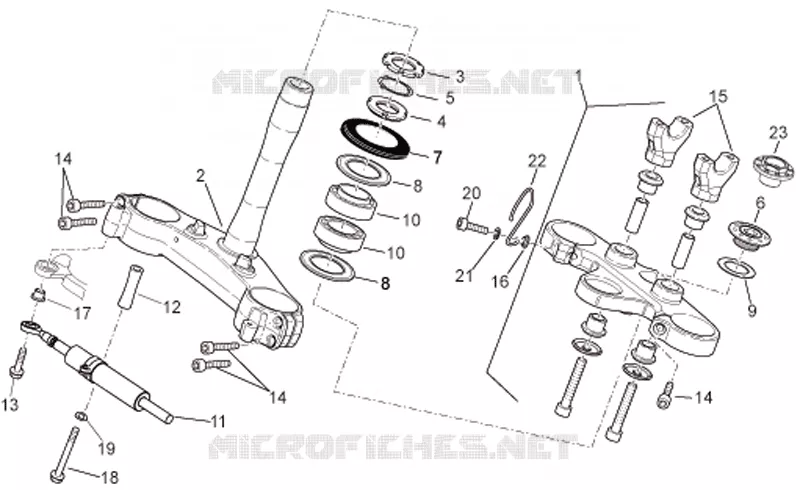

Find the detailed Steering APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
