1
Engine displacement
1000
2
Model
TUONO
3
Year
2007
4
Trim
RSV 1000 Tuono
5
Parts Catalog

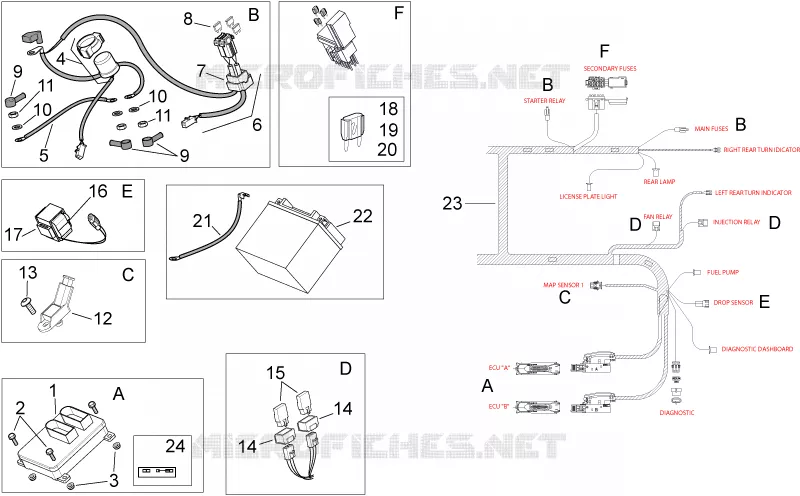

Electrical system II
6
Parts Diagram
Parts Catalog
Cylinder head and valves
by
Acc. - Various I
Electrical system II
1
2
3
4
5
6
7
8
9
9
10
10
11
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
1
CDI unit assy
AP0266531
Not Available
1
CDI unit assy
AP0266533
Not Available
2
Screw w/ flange M6x25
AP8152280
$0,25 Unit Price incl. VAT
3
Self-locking nut M6
AP8152299
$0,34 Unit Price incl. VAT
4
Relay 12V-150A
AP8112927
$47,89 Unit Price incl. VAT
5
Relay-starter motor cable
AP8127145
$25,82 Unit Price incl. VAT
6
Wiring
AP8127148
Not Available
7
Rubber fuse box
AP8112811
$6,40 Unit Price incl. VAT
8
Fuse 30a
AP8124273
Not Available
9
Terminal cap
AP8120218
$5,38 Unit Price incl. VAT
10
Spring washer 6,4x11x0,5*
AP8150429
Not Available
11
Nut M6
AP8150026
$0,16 Unit Price incl. VAT
12
Pressure sensor
AP0274055
Not Available
13
Screw w/ flange M5x16
AP8152298
$0,21 Unit Price incl. VAT
14
Relay 12V-30A
AP8224462
$14,17 Unit Price incl. VAT
15
Rubber spacer *
AP8220283
$0,75 Unit Price incl. VAT
16
Inclination sensor
AP8124266
Not Available
17
Rubber sensor support
AP8144046
Not Available
18
Fuse
AP8176099
Not Available
19
Fuse
AP8176100
$4,82 Unit Price incl. VAT
20
Fuse 15A
AP8127345
Not Available
21
Ground-battery lead
AP8127149
Not Available
22
Battery YTX12-BS
AP8124748
Not Available
23
Main wiring harness
AP8127704
Not Available
24
Diode
896241
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
