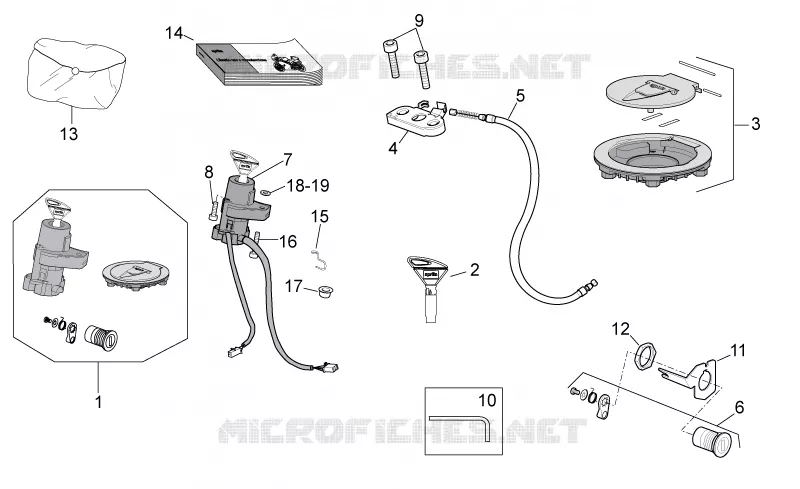

Lock hardware kit FOR Tuono V4 RR FROM 2016

Lock hardware kit

1

Lock kit

B043920

Not Available

2

"Aprilia" key with transpo.

AP8140711

$89,76 Unit Price incl. VAT

3

Fuel filler cap and lock

B043929

$394,24 Unit Price incl. VAT

4

Pass.saddle connecting plate

AP8102913

$8,91 Unit Price incl. VAT

5

Lock cable

858955

$6,08 Unit Price incl. VAT

6

Seat lock with key

AP8104719

$36,58 Unit Price incl. VAT

7

Main switch - steering lock

858580

Not Available

8

Shear rivet M8x28

AP8152238

$3,65 Unit Price incl. VAT

9

Screw M6x40

AP8150468

$3,65 Unit Price incl. VAT

10

Hex key

894195

$0,69 Unit Price incl. VAT

11

Plate

AP8134948

$5,38 Unit Price incl. VAT

12

Lock nut M22x1,5

AP8102523

$8,01 Unit Price incl. VAT

13

Tool roll

2B003301

$20,60 Unit Price incl. VAT

14

Op's handbook I-D-F-E-UK-NL I-F-D-E

2Q000089

Not Available

14

Op's handbook I-D-F-E-UK-NL ZN-EN-IT-DE

2Q000115

Not Available

14

Op's handbook I-D-F-E-UK-NL VN-EN

2Q000133

Not Available

14

Op's handbook I-D-F-E-UK-NL J-UK

2Q000092

Not Available

14

Op's handbook I-D-F-E-UK-NL EN-NL-EL-DA-FI-FR

2Q000090

Not Available

15

Fairlead

B044620

$5,00 Unit Price incl. VAT

16

Hex socket screw M8x35

AP8150236

$0,55 Unit Price incl. VAT

17

T bush 8,2x12x4

AP8121096

$1,70 Unit Price incl. VAT

18

Washer 8,4x16x1,6

AP8150017

$3,65 Unit Price incl. VAT

19

Washer 8,4x13*

AP8152154

$0,16 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
