1
Engine displacement
125
2
Model
TUONO
3
Year
2004
4
Trim
RS 125 Tuono
5
Parts Catalog
Oil tank
6
Parts Diagram
Parts Catalog
Secondary air
by
Exhaust unit
Oil tank
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
1
Oil tank
AP8139689
Not Available
2
Oil reserve indicator
AP8201192
Not Available
3
Oil filler cap
AP8220421
$5,38 Unit Price incl. VAT
4
Mixer oil filter
AP8102224
$4,62 Unit Price incl. VAT
5
Rubber spacer *
AP8102223
$4,62 Unit Price incl. VAT
6
2-way union
AP8101944
$0,76 Unit Price incl. VAT
7
Hose clamp D 11,9
AP8201358
$0,34 Unit Price incl. VAT
8
Hose clip D23,5x8*
AP8101743
$5,38 Unit Price incl. VAT
9
Screw w/ flange M6x25
AP8152280
$0,25 Unit Price incl. VAT
10
Spring washer 6,4x11x0,5*
AP8150429
Not Available
11
Washer 6,4x15x1
AP8152181
$0,07 Unit Price incl. VAT
12
Screw w/ flange M6x20
AP8152279
$0,51 Unit Price incl. VAT
13
Washer 6,6x18*
AP8150179
$0,08 Unit Price incl. VAT
14
Breather pipe
AP8120351
Not Available

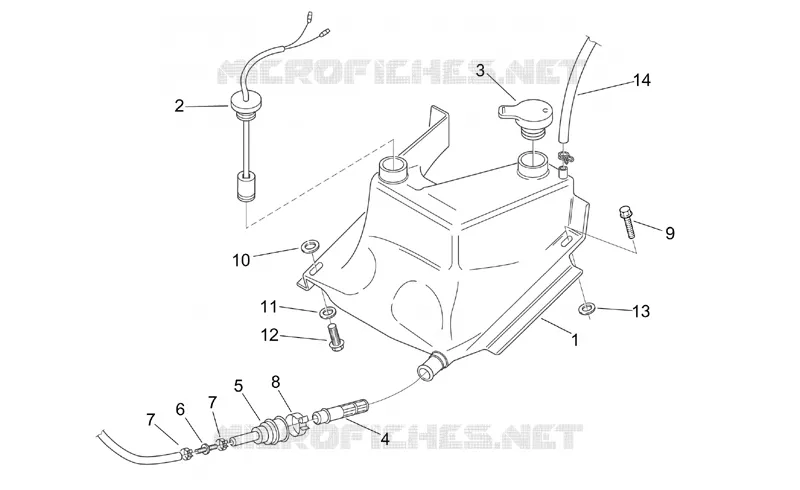

Find the detailed Oil tank APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
