Parts Catalog
Front fork
6

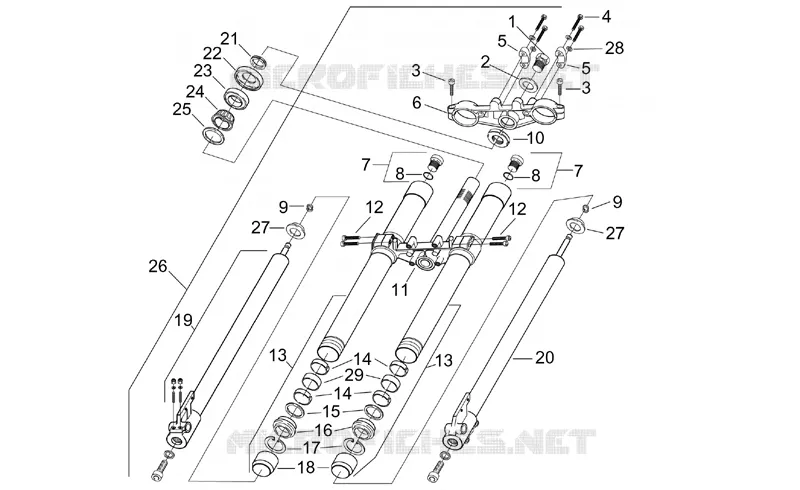

Parts Diagram
Parts Catalog
Central stand
by
Swing arm
Front fork
1
2
3
3
4
5
5
6
7
7
8
8
9
9
10
11
12
12
13
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
28
29
1
Plug
AP8203251
$29,76 Unit Price incl. VAT
2
Washer
AP8123843
Not Available
3
screw M8x35
AP8203590
$3,65 Unit Price incl. VAT
4
Hex screw
AP8152090
Not Available
5
U-bolt
AP8203425
$18,01 Unit Price incl. VAT
6
Fork upper plate
AP8223061
Not Available
7
Plug cpl. D.35
AP8276012
Not Available
8
O-ring
AP8276013
Not Available
9
Half ring
AP8123441
Not Available
10
Fork lower ring nut
AP8203588
$10,00 Unit Price incl. VAT
11
Lower plate
AP8276014
Not Available
12
Hex socket screw M6x30
AP8123574
Not Available
13
Sleeve cpl., black
AP8276015
Not Available
14
Bush
AP8203447
Not Available
15
Cup
AP8123705
Not Available
16
Gasket ring
AP8103392
Not Available
17
Stop ring
AP8123704
Not Available
18
Dust cover
AP8203258
Not Available
19
Hub+RH fork leg
AP8203811
Not Available
20
Hub+LH fork leg
AP8203810
Not Available
21
Spacer
AP8101272
$3,65 Unit Price incl. VAT
22
Dust cover
AP8120211
$1,37 Unit Price incl. VAT
23
Ball bearing
AP8110025
$10,00 Unit Price incl. VAT
24
Roller bearing
AP8110024
$15,98 Unit Price incl. VAT
25
Lower dust cover ring
AP8101271
$3,65 Unit Price incl. VAT
26
Front fork
AP8223099
Not Available
27
Ring
AP8276016
Not Available
28
Washer D7
AP8203427
Not Available
29
Spacer
AP8276017
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
