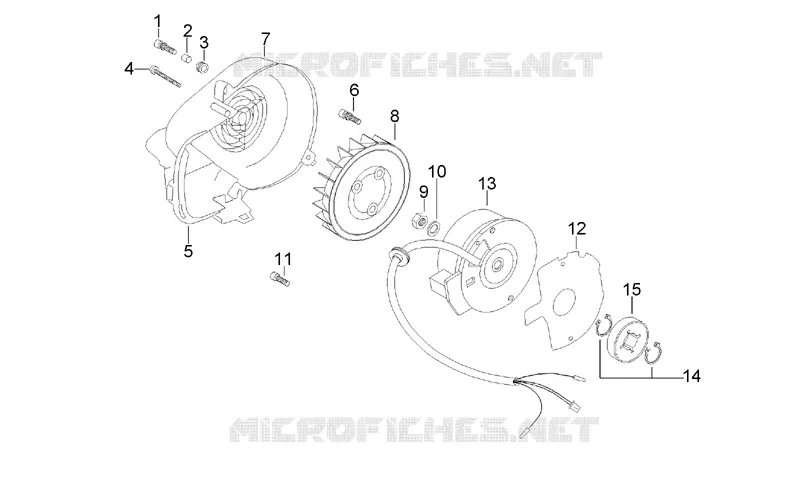

Flywheel
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
Screw w/ washer M6x20
AP8206510
Not Available
2
Bush 6,5x8,5x10
AP8206480
Not Available
3
Silent-block
AP8206471
Not Available
4
Screw 5,5x40
AP8206494
Not Available
5
Duct gasket
AP8206474
Not Available
6
Screw w/ 2 washers M6x16
AP8206499
Not Available
7
Fan shroud
AP8206528
Not Available
8
Plastic fan
AP8206461
Not Available
9
Nut M10x1,25
AP8206183
Not Available
10
Washer D10,5x18x2
AP8206205
Not Available
11
Screw M6x16
AP8502563
Not Available
12
Flyw. stator gasket
AP8206485
Not Available
13
Cdi magneto assy
AP8206462
Not Available
14
Outside circlip D19
AP8206179
Not Available
15
Oil pump drive gear
AP8206746
Not Available
15
Oil pump drive gear
AP8206145
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
