Parts Catalog
Driven shaft 5 speed gearbox
6

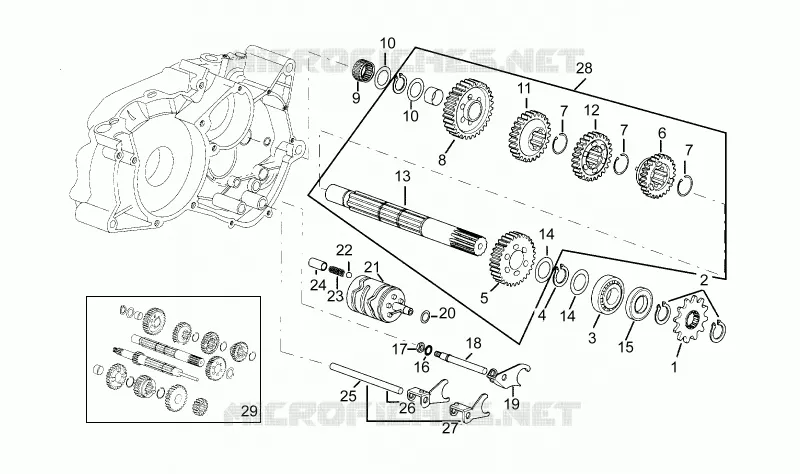

Parts Diagram
Parts Catalog
Driven shaft
by
Carburettor
Driven shaft 5 speed gearbox
1
2
3
4
5
6
7
7
7
8
9
10
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
Intermediate gear Z=14
AP8206314
Not Available
1
Intermediate gear Z=13
AP8206355
$20,11 Unit Price incl. VAT
1
Intermediate gear Z=11
AP8206313
Not Available
1
Intermediate gear Z=12
AP8206376
Not Available
2
Outside circlip D17
AP8501484
Not Available
3
Bearing D17x40x12
AP8502626
Not Available
4
Outside circlip D17
AP8206233
Not Available
5
2nd wheel gear Z=33
AP8206443
Not Available
6
5th wheel gear Z=25
AP8206446
Not Available
7
Outside circlip D20
AP8507866
Not Available
8
1st wheel gear Z=36
AP8206442
Not Available
9
Gear bush 13x20x13,5
AP8206536
Not Available
10
Blue steel washer D13x25
AP8206347
Not Available
11
4th wheel gear Z=27
AP8206445
Not Available
12
3rd wheel gear Z=29
AP8206444
Not Available
13
Secondary gear shaft
AP8206436
Not Available
14
Blue steel washer D17,2x30
AP8502498
Not Available
15
Oil seal D17x35x7
AP8206291
Not Available
16
Int. notched washer D7
AP8502473
$3,65 Unit Price incl. VAT
17
Nut M7x5,5
AP8502414
Not Available
18
Fork guide pin
AP8206298
$16,44 Unit Price incl. VAT
19
Fork 4-5 speed
AP8206434
Not Available
20
Blue steel washer D10x16
AP8206269
$3,65 Unit Price incl. VAT
21
Shift cam
AP8206431
Not Available
22
Key Balance shaft 4x4x8
AP8206263
$4,82 Unit Price incl. VAT
23
Gear indicator spring
AP8206261
Not Available
24
Pin retainer
AP8206336
Not Available
25
Fork guide pin
AP8502826
Not Available
26
Fork 1 speed
AP8206432
Not Available
27
Fork 2-3 speed
AP8206433
Not Available
28
Secondary shaft cpl.5 spd.
AP8206448
Not Available
29
Gear box cpl.5 speed
AP8206449
Not Available
