Parts Catalog
Drive shaft
6

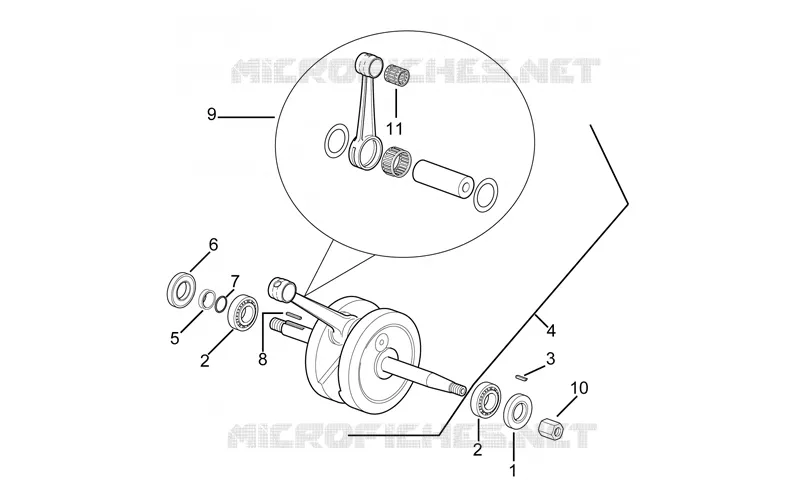

Parts Diagram
Parts Catalog
Oil pump
by
Piston
Drive shaft
1
2
2
3
4
5
6
7
8
9
10
11
1
Oil seal D17x35x8
AP8509182
$8,65 Unit Price incl. VAT
2
Bearing D17x47x14
AP8206282
Not Available
3
Flywheel magneto key
AP8508551
$5,53 Unit Price incl. VAT
4
Crankshaft assy
AP8206311
Not Available
5
Spacer D16,9x24x8
AP8206268
Not Available
6
Oil seal D24x35x7
AP8206290
$23,53 Unit Price incl. VAT
7
O-ring D12,5x1,5
AP8206366
Not Available
8
Transmission key 4x4x20
AP8206264
Not Available
9
Connecting rod cpl.
AP8206349
Not Available
10
Nut M10x1,2x15
AP8509891
Not Available
11
Cage D12x15x15
AP8509769
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
