1
Engine displacement
50
2
Model
RX
3
Year
1997
4
Trim
RX
5
Parts Catalog
Rear shock absorber
6
Parts Diagram
Parts Catalog
Swing arm
by
Front body I

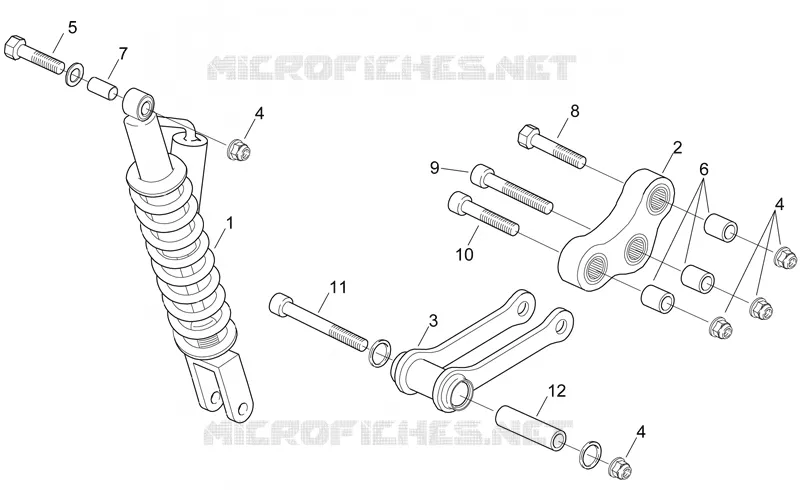

Rear shock absorber
1
2
3
4
4
4
5
6
7
8
9
10
11
12
1
Shock absorber
AP8203668
Not Available
2
Double conrod
AP8232497
Not Available
3
Single conrod, black
AP8232498
Not Available
4
Self-locking nut
AP8152301
$0,59 Unit Price incl. VAT
5
Screw
AP8150227
$3,65 Unit Price incl. VAT
6
Roller cage
AP8110063
$8,16 Unit Price incl. VAT
7
Washer 10,5x21x2*
AP8150020
$0,08 Unit Price incl. VAT
8
Screw
AP8150323
$3,65 Unit Price incl. VAT
9
screw M10x60
AP8150049
$3,70 Unit Price incl. VAT
10
Hex socket screw
AP8150329
$3,65 Unit Price incl. VAT
11
Hex socket screw M10x80
AP8150192
$3,65 Unit Price incl. VAT
12
Spacer 18x21x18
AP8221001
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
