Front fork I for APRILIA RXV from 2010

Front fork I

1

LH hub cpl.

855621

Not Available

1

LH hub cpl.

851291

Not Available

2

RH hub cpl.

851290

Not Available

2

BOUCHON DROITE

855620

$921,38 Unit Price incl. VAT

3

Hub+LH fork leg

AP9100847

Not Available

4

Hub+RH fork leg

AP9100848

Not Available

5

Upper bush 45x15

AP9100855

Not Available

6

Rondelle

AP8163094

$6,30 Unit Price incl. VAT

7

Bague d'étanchéité

AP8163095

$22,46 Unit Price incl. VAT

8

Bague de butée

AP8163096

$3,65 Unit Price incl. VAT

9

Pare-poussière

AP8163097

$25,10 Unit Price incl. VAT

10

Sleeve cpl.

855857

Not Available

10

Sleeve cpl.

AP9100849

Not Available

11

Goujon+Joint torique

AP8163370

$21,37 Unit Price incl. VAT

12

Ring spring d.40

AP9100850

Not Available

13

Kit ressort kit

AP9100851

$130,19 Unit Price incl. VAT

14

Plunger, complete

896561

Not Available

14

Plunger, complete

AP9100852

Not Available

15

Vis bride

AP8152280

$0,25 Unit Price incl. VAT

16

Lower bush 45x20

AP9100856

$29,76 Unit Price incl. VAT

17

Soupape

AP9100853

$116,50 Unit Price incl. VAT

18

Plug cpl. d.45

AP9100854

Not Available

19

Seal rings fork kit

AP9100857

Not Available

20

Jeu de joints

AP9100858

$197,20 Unit Price incl. VAT

21

Kit douille

AP9100859

$99,45 Unit Price incl. VAT

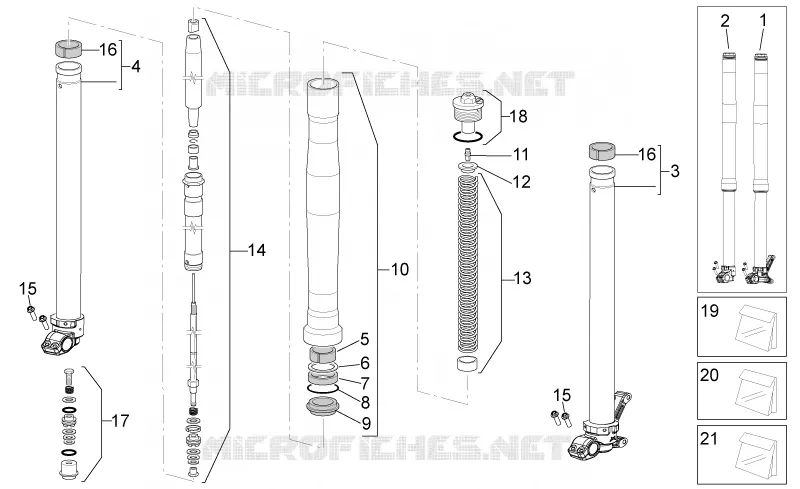

Find the detailed Front fork I APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
