Rear wheel for APRILIA RXV from 2009

Rear wheel

1

Rear tyre 140/80X18" Pirelli

855694

Not Available

2

Inner tube 18"

855742

Not Available

3

FLAP RUOTA POSTERIORE 17

AP8109281

$13,53 Unit Price incl. VAT

4

Tyre clamp

AP9100462

Not Available

5

Rear wheel 2,15X18"

855587

Not Available

6

Moyeu arrière

AP9100214

$372,87 Unit Price incl. VAT

7

Ball bearing 25x42x9

AP9100216

Not Available

8

Gasket ring 32x42x7

AP9100227

Not Available

9

Bague;

AP8121334

$3,65 Unit Price incl. VAT

10

Internal spacer L=106,5 mm

AP9100215

Not Available

11

Rayon

AP9100056

$5,38 Unit Price incl. VAT

12

Rayon

AP9100211

$5,38 Unit Price incl. VAT

13

Nipple

AP9100213

$5,38 Unit Price incl. VAT

14

Rear brake disc d.240

855748

Not Available

15

Vis bride M6X16

855625

$3,65 Unit Price incl. VAT

16

Douille entretoise externe

AP9100595

$17,01 Unit Price incl. VAT

17

Screw M8x30

855626

$3,65 Unit Price incl. VAT

18

Rondelle fer plate

AP8150009

$3,65 Unit Price incl. VAT

19

Low self-locking nut M8x1,25

AP9100432

$3,65 Unit Price incl. VAT

20

Couronne dentée Z=50

CM238207

$87,60 Unit Price incl. VAT

21

Chain

855845

Not Available

22

Maillon de jonction

AP9100533

$9,18 Unit Price incl. VAT

23

Rear wheel 18"

855585

Not Available

24

Caoutchouc

AP8120001

$0,77 Unit Price incl. VAT

25

Spacer

AP9100318

Not Available

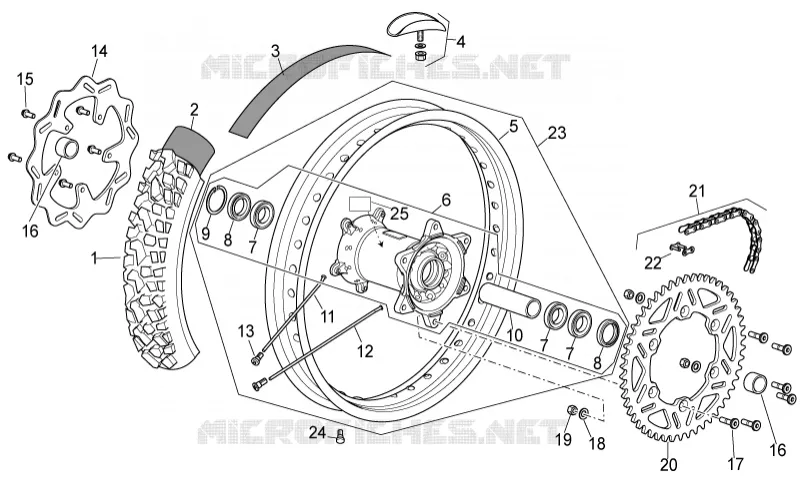

Find the detailed Rear wheel APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
