Crankcase I FOR RXV STREET LEGAL FROM 2011

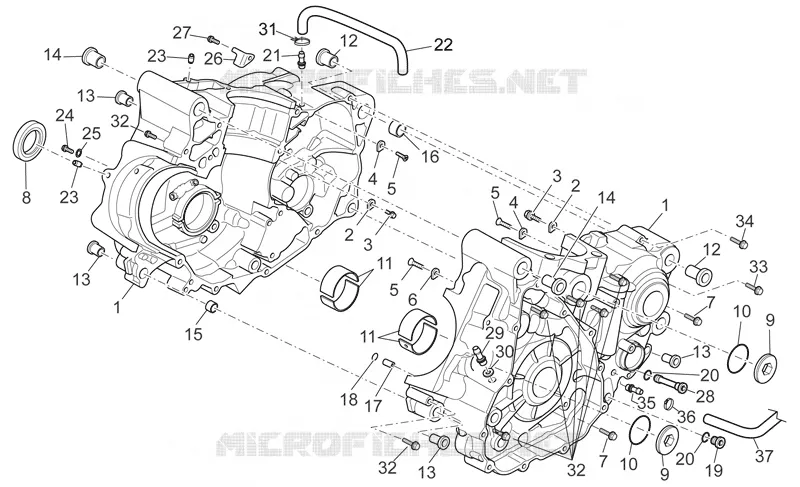

Crankcase I

1

Carter, pair

CM155403

Not Available

1

Carter, pair

CM155401

Not Available

2

Check bearing plate

AP9150146

$6,30 Unit Price incl. VAT

3

Screw w/ flange M6x12

AP8152277

$0,25 Unit Price incl. VAT

4

Check bearing plate

AP9150145

$14,30 Unit Price incl. VAT

5

Screw M6x12

AP9150394

$3,65 Unit Price incl. VAT

6

Check bearing plate

AP9150489

$24,90 Unit Price incl. VAT

7

Screw w/ flange

AP8152283

$0,32 Unit Price incl. VAT

8

Oil seal D32x45x6

AP9150435

Not Available

9

Cover

AP9150149

$12,45 Unit Price incl. VAT

10

O-ring D26,65x2,62

AP9150353

$5,38 Unit Price incl. VAT

11

Bushing half-shell, blue

AP9150456

Not Available

11

Bearing half-shell, green

AP9150324

Not Available

11

Bushing half-shell, yellow

AP9150457

Not Available

12

T bush 34x21x10,5-L18

AP9150440

$9,41 Unit Price incl. VAT

13

T bush 28x13x10,5-L11,5

AP9150441

$5,20 Unit Price incl. VAT

14

T bush 19x13x10,5-L11,5

AP9150442

$6,60 Unit Price incl. VAT

15

Bush D16x19X13

AP9150116

$6,60 Unit Price incl. VAT

16

Bush D18x21X19

AP9150115

$6,60 Unit Price incl. VAT

17

Pin D7,2x9x12

AP9150117

$7,69 Unit Price incl. VAT

18

O-ring D8,73x1,78

AP9150350

Not Available

19

Oil unload plug

AP9150174

$3,65 Unit Price incl. VAT

20

Seal washer D12x18x1,5

AP9150349

Not Available

21

Joint

AP9150533

$5,38 Unit Price incl. VAT

22

Breather pipe

AP9150471

$5,38 Unit Price incl. VAT

23

Jet

AP9150346

$30,28 Unit Price incl. VAT

24

Screw w/ flange

AP8152285

$0,51 Unit Price incl. VAT

25

Washer D8x16x1,5

AP8121862

$3,65 Unit Price incl. VAT

26

Plate

AP9150439

Not Available

27

Screw w/ flange M6x12

AP8152277

$0,25 Unit Price incl. VAT

28

Oil unload plug

AP9150078

$10,76 Unit Price incl. VAT

29

Joint

AP9150109

$7,23 Unit Price incl. VAT

30

Seal washer D12x18x1,5

AP9150349

Not Available

31

Hose clamp D9,1*

AP8102377

$3,65 Unit Price incl. VAT

32

Screw w/ flange M7x1x42

AP9150526

$3,65 Unit Price incl. VAT

33

Screw w/ flange M6x65

828909

$0,29 Unit Price incl. VAT

34

Screw w/ flange M6x75

828922

$0,38 Unit Price incl. VAT

35

Joint

AP9150344

Not Available

36

Hose clamp

CM001911

$3,70 Unit Price incl. VAT

37

Breather pipe 5x9

AP9150545

$5,38 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
