1
Engine displacement
50
2
Model
EUROPA
3
Year
1992
4
Trim
EUROPA
5
Parts Catalog
Body
6
Parts Diagram
Parts Catalog
Cdi magneto assy
by
Front fork M
Body
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
24
23
22
21
20
19
18
17
16
13
12
11
10
9
8
7
6
5
4
3
2
1
1
Fuel tank
AP8231027
Not Available
2
Fuel cock
AP8201397
Not Available
3
Fairlead
AP8221098
Not Available
4
Joint orifice rempl.
AP8120702
$5,38 Unit Price incl. VAT
5
LH side panel, alum.
AP8230617
Not Available
6
Crom.tank plug
AP8102228
Not Available
7
Driver saddle, black
AP8229075
Not Available
8
RH side panel, alum. 180
AP8230615
Not Available
9
RH side panel, black
AP8230774
Not Available
10
LH side panel, black
AP8230776
Not Available
11
LH air duct, black
AP8230765
Not Available
12
RH air duct, black
AP8230763
Not Available
13
Pillar, black
AP8230761
Not Available
16
Rear fairing, black
AP8230772
Not Available
17
Spoiler, Ap. black
AP8230784
Not Available
18
Tubulure remplissage
AP8121784
$15,31 Unit Price incl. VAT
19
Ring nut fuel filler cap
AP8102361
Not Available
20
Toolkit
AP8201269
Not Available
21
Elastique support feu
AP8120177
$5,38 Unit Price incl. VAT
22
Battery hook
AP8101313
Not Available
23
LH support
AP8230769
Not Available
24
Caoutchouc réserv.
AP8120557
$6,70 Unit Price incl. VAT
25
Black toolbox
AP8201401
Not Available
26
Fuel tap union
AP8221152
Not Available
27
Front mudguard, black
AP8226176
Not Available
28
Rear fairing, black
AP8230782
Not Available
29
Number plate holder, black
AP8226134
Not Available
30
RH support, black
AP8230767
Not Available
31
Caoutchouc avec insert
AP8120531
$6,30 Unit Price incl. VAT
32
Catadioptre
AP8112560
$2,13 Unit Price incl. VAT
33
Caoutchouc
AP8120030
$0,85 Unit Price incl. VAT
34
Bush
AP8221099
Not Available
35
Garde-boue arrière noir;
AP8226126
$6,24 Unit Price incl. VAT
36
Clip
AP8102375
$0,69 Unit Price incl. VAT
37
Tank cover, red
AP8230771
Not Available
38
Water cooler shield, black
AP8230804
Not Available
39
Decal set
AP8211983
Not Available
40
Rondelle
AP8120591
$0,25 Unit Price incl. VAT
41
Plaque rigidification
AP8103705
$11,69 Unit Price incl. VAT
42
T bush *
AP8121673
$5,90 Unit Price incl. VAT
43
Lock
AP8201747
Not Available
44
Lock lever
AP8135148
Not Available
45
Caoutchouc
AP8220241
$6,30 Unit Price incl. VAT
46
O-ring 3050
AP8120796
Not Available
47
Rondelle évent.
AP8221312
$0,34 Unit Price incl. VAT
48
Ecrou bas
AP8152194
$1,10 Unit Price incl. VAT
49
Rondelle
AP8201748
$0,14 Unit Price incl. VAT
50
Vis
AP8201749
$0,16 Unit Price incl. VAT

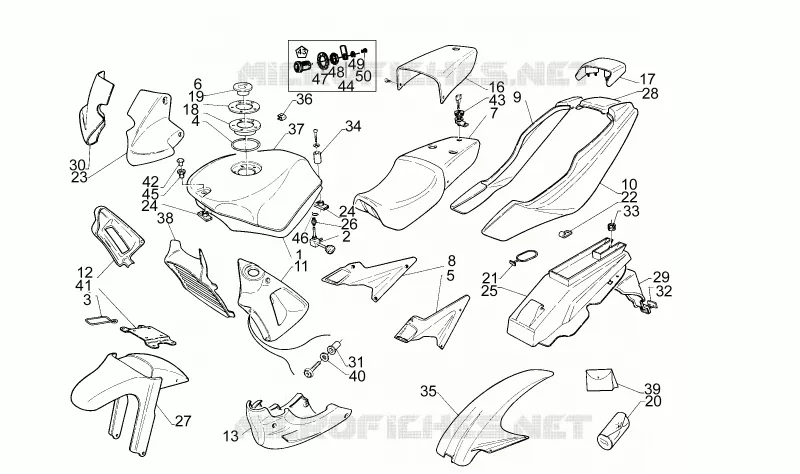

Find the detailed Body APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
