1
Engine displacement
450
2
Model
RXV-SXV
3
Year
2008
4
Trim
RXV-SXV
5
Parts Catalog

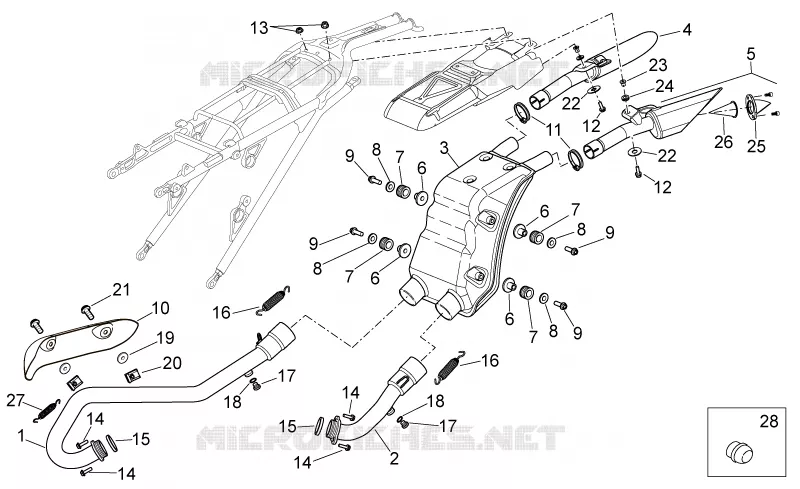

Exhaust unit I
6
Parts Diagram
Parts Catalog
Rear body II
by
Starter motor
Exhaust unit I
1
2
3
4
5
6
6
6
6
7
7
7
7
8
8
8
8
9
9
9
9
10
11
12
12
13
14
14
14
14
15
15
16
16
17
17
18
18
19
20
21
22
22
23
24
25
26
27
28
1
Front. Exhaust pipe
855036
$239,96 Unit Price incl. VAT
1
Front. Exhaust pipe
855025
Not Available
1
Front. Exhaust pipe
855037
Not Available
1
Front. Exhaust pipe
855086
$82,78 Unit Price incl. VAT
2
Rear exhaust pipe
855087
Not Available
2
Rear exhaust pipe
855026
Not Available
3
Silencer
AP9100414
Not Available
3
Silencer
856941
$626,82 Unit Price incl. VAT
4
RH terminal
856947
Not Available
4
RH terminal
AP9100244
$111,85 Unit Price incl. VAT
5
LH terminal
AP9100249
Not Available
5
LH terminal
856946
Not Available
6
Bush
AP9100409
$6,60 Unit Price incl. VAT
7
Silent-block
AP9100845
Not Available
8
Washer 8,3x20x1,5
AP9100736
$3,65 Unit Price incl. VAT
9
Screw w/ flange M8x30
AP8152288
$1,70 Unit Price incl. VAT
10
RH exhaust pipe shield
AP9100238
$29,51 Unit Price incl. VAT
11
Hose clamp D.30
AP9100241
Not Available
12
Screw w/ flange M6x20
AP8152279
$0,51 Unit Price incl. VAT
13
Self-locking nut M6x1
AP9100434
$29,76 Unit Price incl. VAT
14
Screw w/ flange M6x16
AP8152278
$1,77 Unit Price incl. VAT
15
Exhaust pipe gasket
AP9100252
Not Available
16
Spring
AP8121170
$17,07 Unit Price incl. VAT
17
CO intake screw
AP9100755
$8,91 Unit Price incl. VAT
18
Washer 10x14x1
AP8119603
$3,65 Unit Price incl. VAT
19
Insulating washer
AP8120870
$3,65 Unit Price incl. VAT
20
Clip M6
AP8102376
Not Available
21
Screw w/ flange M6x12
AP8152342
$9,41 Unit Price incl. VAT
22
Washer 6,6x18x1,6*
AP8150015
$0,16 Unit Price incl. VAT
23
T bush
AP9100302
$29,76 Unit Price incl. VAT
24
Rubber spacer
AP9100301
$5,00 Unit Price incl. VAT
25
Bottom
851172
$57,79 Unit Price incl. VAT
26
Spark arrester
851171
$44,42 Unit Price incl. VAT
27
Exhaust pipes spring
858142
Not Available
28
Ogive
858592
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
