1
Engine displacement
150
2
Model
LEONARDO
3
Year
1996
4
Trim
Leonardo
5
Parts Catalog
Connecting rod
6
Parts Diagram
Parts Catalog
Front fork - Sleeves
by
Electrical system
Connecting rod
1
2
2
2
3
3
3
4
4
5
5
6
6
7
8
9
10
11
11
12
12
13
13
14
15
16
16
17
18
19
19
1
Engine pivot pin
AP8121930
Not Available
2
Rondelle fer plate
AP8152018
$3,65 Unit Price incl. VAT
3
Ecrou autofr. bas
AP8150432
$3,65 Unit Price incl. VAT
4
Rondelle élastique courbe
AP8150210
$0,07 Unit Price incl. VAT
5
Hex socket screw M10x20
AP8150455
Not Available
6
Resin bush
AP8102538
$3,65 Unit Price incl. VAT
7
Frame coupling rod
AP8135850
Not Available
8
Rod bush
AP8121975
Not Available
9
Pivot M12x270
AP8221227
$22,46 Unit Price incl. VAT
10
Rod bush
AP8121976
Not Available
11
Stop conn.rod guard
AP8121931
$10,76 Unit Price incl. VAT
12
T bush
AP8121214
Not Available
13
Silent-block, connecting rod
AP8120877
Not Available
14
Ecrou autobloqu.
AP8152301
$0,59 Unit Price incl. VAT
15
Pivot support moteur
AP8221160
$6,60 Unit Price incl. VAT
16
Entretoise
AP8121218
$8,01 Unit Price incl. VAT
17
Engine connecting element
AP8135622
Not Available
18
Engine pivot pin bush
AP8121954
Not Available
19
Outside circlip D17
AP8206233
Not Available

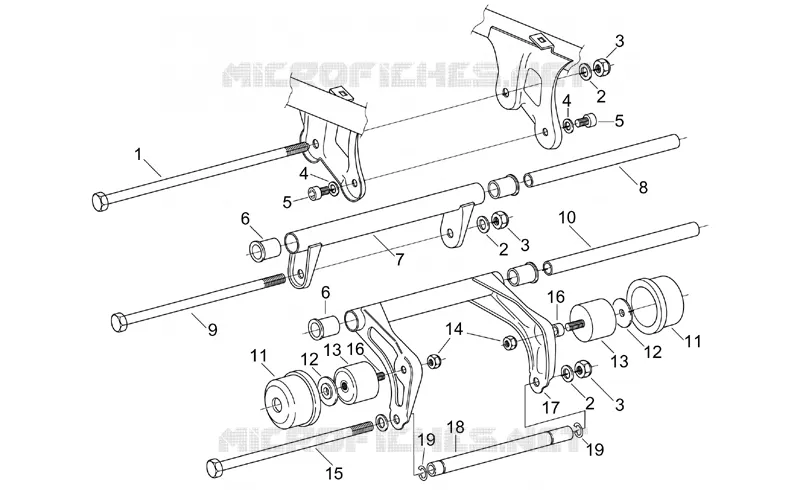

Find the detailed Connecting rod APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
