1
Engine displacement
550
2
Model
RXV-SXV
3
Year
2009
4
Trim
RXV-SXV Pikes Peak
5
Parts Catalog
Rear shock absorber
6
Parts Diagram
Parts Catalog
Crankcase II
by
Controls

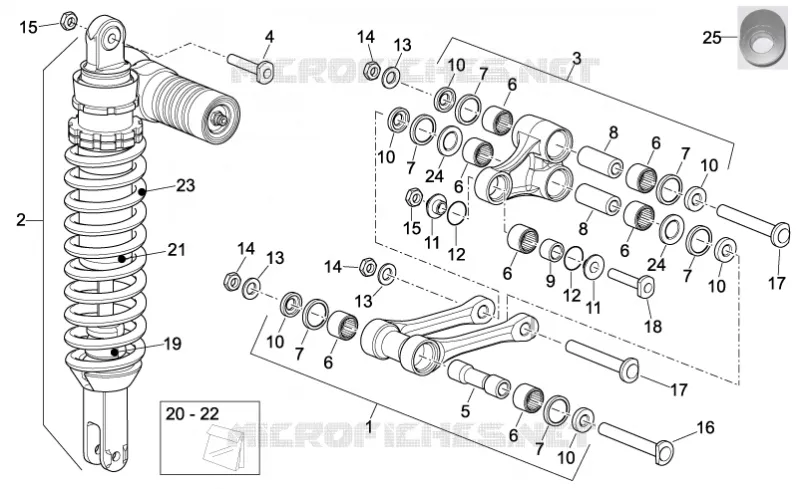

Rear shock absorber
1
2
3
4
5
6
6
6
6
6
6
6
7
7
7
7
7
7
8
8
9
10
10
10
10
10
10
11
11
12
12
13
13
13
14
14
14
15
15
16
17
17
18
19
20
21
22
23
24
24
1
Single conrod comp.
AP9100176
Not Available
2
Rear shock absorber SXV
AP9100114
Not Available
2
Rear shock absorber RXV
851292
Not Available
3
Double conrod comp.
AP9100180
Not Available
4
screw M10x1,25 L=53
AP9100007
$10,67 Unit Price incl. VAT
5
Piston pin
AP9100178
$143,87 Unit Price incl. VAT
6
Roller cage 20x27x15
AP9100181
$21,87 Unit Price incl. VAT
7
Gasket ring 25x32x4
AP9100177
$8,01 Unit Price incl. VAT
8
Piston pin
AP9100184
Not Available
9
Spacer
AP9100111
Not Available
10
Spacer
AP9100179
$9,41 Unit Price incl. VAT
11
Outside spacer
AP9100186
$9,41 Unit Price incl. VAT
12
O-ring 1,5x24
AP9100549
Not Available
13
Washer 12,2x22x2
AP8152018
$3,65 Unit Price incl. VAT
14
Low self-locking nut M12x1,25
AP9100442
Not Available
15
Low self-locking nut M10x1,25
AP9100439
$3,65 Unit Price incl. VAT
16
screw M12x1,25 L=120
AP9100604
$15,31 Unit Price incl. VAT
17
screw M12x1,25 L=95
AP9100289
$15,31 Unit Price incl. VAT
18
screw M10x1,25 L=44
AP9100208
$10,95 Unit Price incl. VAT
19
Pad
AP9100808
Not Available
20
Gasket set
AP9100815
Not Available
20
Gasket set
AP9100814
Not Available
21
Sleeve unit
AP9100817
$143,10 Unit Price incl. VAT
22
Sleeve gasket set
AP9100820
$24,14 Unit Price incl. VAT
23
Spring
AP9100826
Not Available
23
Spring
AP9100827
Not Available
24
Flat washer 31x20,2x1,4
AP9100182
$3,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
