Crankcase I for APRILIA SXV from 2010

Crankcase I

1

Carter, pair

CM155404

Not Available

1

Carter, pair

CM155402

Not Available

2

Plaq. retien roul.

AP9150146

$6,30 Unit Price incl. VAT

3

Vis bride

AP8152277

$0,25 Unit Price incl. VAT

4

Plaq. retien roul.

AP9150145

$14,30 Unit Price incl. VAT

5

(*)VITE TSPEI M6X12

AP9150394

$3,65 Unit Price incl. VAT

6

Plaq. retien roul.

AP9150489

$24,90 Unit Price incl. VAT

7

Vis bride

AP8152283

$0,32 Unit Price incl. VAT

8

Oil seal D32x45x6

AP9150435

Not Available

9

Bouchon

AP9150149

$12,45 Unit Price incl. VAT

10

Joint torique

AP9150353

$5,38 Unit Price incl. VAT

11

Bushing half-shell, blue

AP9150456

Not Available

11

Bearing half-shell, green

AP9150324

Not Available

11

Bushing half-shell, yellow

AP9150457

Not Available

12

Douille en "T"

AP9150440

$9,41 Unit Price incl. VAT

13

Douille en "T"

AP9150441

$5,20 Unit Price incl. VAT

14

Douille en "T"

AP9150442

$6,60 Unit Price incl. VAT

15

Douille

AP9150116

$6,60 Unit Price incl. VAT

16

Douille

AP9150115

$6,60 Unit Price incl. VAT

17

(*)BUSSOLA RIFERIMENTO

AP9150117

$7,69 Unit Price incl. VAT

18

O-ring D8,73x1,78

AP9150350

Not Available

19

Bouchon vid.huile

AP9150174

$3,65 Unit Price incl. VAT

20

Seal washer D12x18x1,5

AP9150349

Not Available

21

(*)RACCORDO SFIATO OLIO

AP9150533

$5,38 Unit Price incl. VAT

22

Tuyau reniflard radiateur

AP9150471

$5,38 Unit Price incl. VAT

23

Jet

AP9150346

$30,28 Unit Price incl. VAT

24

Vis bride

AP8152285

$0,51 Unit Price incl. VAT

25

Rondelle

AP8121862

$3,65 Unit Price incl. VAT

26

Plate

AP9150439

Not Available

27

Vis bride

AP8152277

$0,25 Unit Price incl. VAT

28

Bouchon vid.huile

AP9150078

$10,76 Unit Price incl. VAT

29

Raccord

AP9150109

$7,23 Unit Price incl. VAT

30

Seal washer D12x18x1,5

AP9150349

Not Available

31

Collier

AP8102377

$3,65 Unit Price incl. VAT

32

(*)VITE TEF M7X1 - L42

AP9150526

$3,65 Unit Price incl. VAT

33

Screw w/ flange M6x65

828909

$0,29 Unit Price incl. VAT

34

VIS

828922

$0,38 Unit Price incl. VAT

35

Joint

AP9150344

Not Available

36

Hose clip

CM001911

$3,70 Unit Price incl. VAT

37

Tuyau reniflard radiateur

AP9150545

$5,38 Unit Price incl. VAT

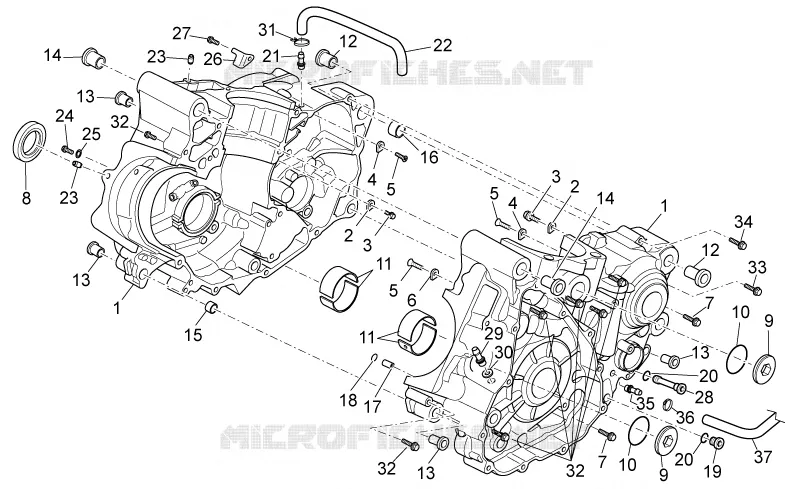

Find the detailed Crankcase I APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
