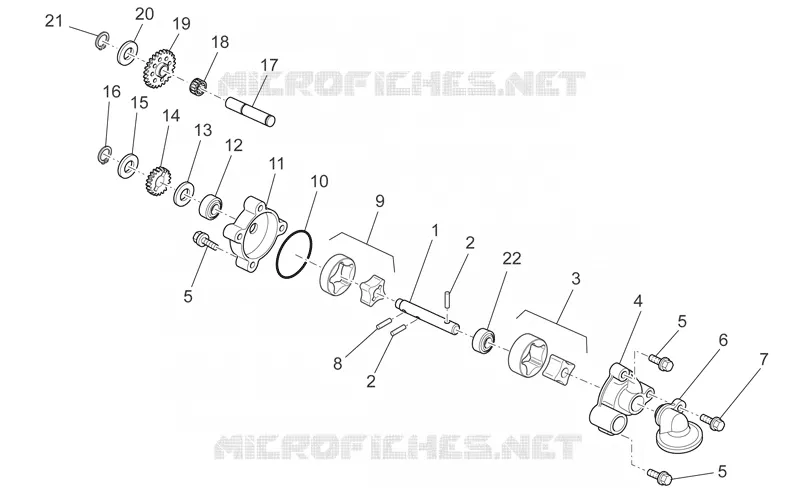

Oil pump
1
2
2
3
4
5
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Oil pump shaft assy.
AP9150071
$61,48 Unit Price incl. VAT
2
Pin 4x15,8
AP9150377
$6,35 Unit Price incl. VAT
3
Internal and external rotor H19
AP9150157
$32,18 Unit Price incl. VAT
4
Oil pump housing
AP9150158
$21,52 Unit Price incl. VAT
5
Screw w/ flange M6x25
AP8152280
$0,25 Unit Price incl. VAT
6
Filter with net-air intake
AP9150162
Not Available
7
Screw w/ flange M6x30
AP8152281
$1,70 Unit Price incl. VAT
8
Pin 4x13,8
AP9150376
$7,70 Unit Price incl. VAT
9
Internal and external rotor H8
AP9150291
$24,38 Unit Price incl. VAT
10
O-ring D44,17x1,78
AP9150461
$5,38 Unit Price incl. VAT
11
Oil pump housing
AP9150217
Not Available
12
Oil seal D19x10x7/5.5
AP9150385
$8,01 Unit Price incl. VAT
13
Clearance washer 10,1x23
AP9150076
$3,65 Unit Price incl. VAT
14
Oil pump gear Z=12
AP9150159
$147,55 Unit Price incl. VAT
15
Clearance washer 9,1x16x
AP9150075
$3,65 Unit Price incl. VAT
16
Circlip 9x1
AP9150396
$3,65 Unit Price incl. VAT
17
Pin 4x25,8
AP9150160
$56,87 Unit Price incl. VAT
18
Roller cage D11x16x10
AP9150463
$18,75 Unit Price incl. VAT
19
Idle gear Z=22
AP9150161
Not Available
20
Clearance washer 11,1x18
AP9150074
$3,65 Unit Price incl. VAT
21
Circlip D11
006411
$2,95 Unit Price incl. VAT
22
Oil seal D10x16x4
AP9150443
$5,20 Unit Price incl. VAT
