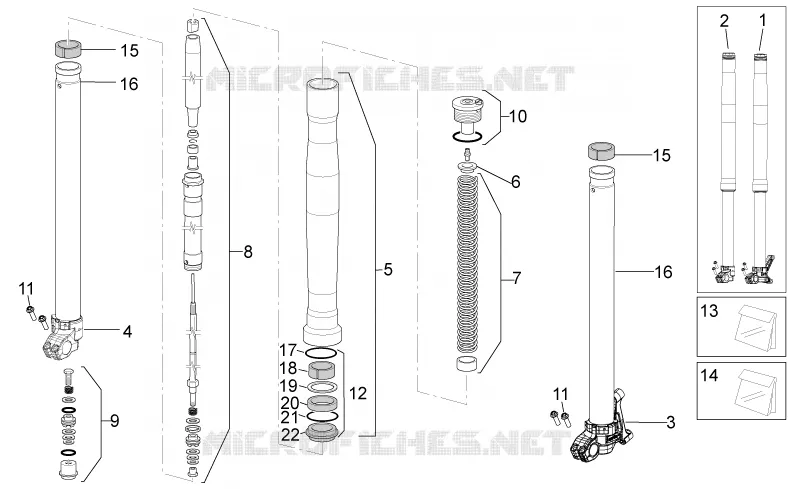

Front fork
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
15
16
16
17
18
19
20
21
22
1
LH hub cpl.
859802
Not Available
1
LH hub cpl.
855116
Not Available
2
RH hub cpl.
859803
Not Available
2
RH hub cpl.
855119
Not Available
3
Hub+LH fork leg
896559
Not Available
3
LH wheel carrier
855796
$201,00 Unit Price incl. VAT
4
Hub+RH fork leg
896558
Not Available
4
RH wheel carrier
855797
$201,00 Unit Price incl. VAT
5
Sleeve cpl.
896553
Not Available
5
Sleeve cpl.
855798
$351,82 Unit Price incl. VAT
6
Ring spring D.40
AP9100872
Not Available
6
Ring spring d.50
896554
Not Available
7
Spring kit
AP9100873
$44,42 Unit Price incl. VAT
7
Spring kit
896555
Not Available
8
Plunger, complete
896557
Not Available
8
Plunger, complete
AP9100874
Not Available
9
Valve D.45
AP9100875
$264,51 Unit Price incl. VAT
9
Valve d.50
896556
$344,44 Unit Price incl. VAT
10
Plug cpl. d.50
893189
$87,60 Unit Price incl. VAT
10
Plug cpl. D.45
AP9100876
$203,35 Unit Price incl. VAT
11
Screw M6x25
893187
$5,38 Unit Price incl. VAT
11
Screw w/ flange M8x25
AP8152287
$0,34 Unit Price incl. VAT
12
Dust cover+oil seal kit
AP9100877
$36,15 Unit Price incl. VAT
13
Gaskets set d.48
AP9100878
$137,72 Unit Price incl. VAT
14
Bushes kit
AP9100879
$85,30 Unit Price incl. VAT
15
Lower bush
854000
$29,76 Unit Price incl. VAT
15
Bushing
894814
Not Available
16
Front fork tube
894816
Not Available
17
Stop ring d.62x2,0
855001
$3,65 Unit Price incl. VAT
18
Upper bush 50x15
853982
$22,46 Unit Price incl. VAT
19
Ring
AP8163069
$8,01 Unit Price incl. VAT
20
Oil seal
AP8163070
$46,92 Unit Price incl. VAT
21
Stop ring
AP8163071
$3,65 Unit Price incl. VAT
22
Dust cover
AP8163072
$18,86 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
