Front cylinder timing system for APRILIA SXV STREET LEGAL from 2009

Front cylinder timing system

1

Front camshaft

851000

Not Available

1

Front camshaft

CM2376015

Not Available

2

Ball bearing D25x37x7

AP9150364

Not Available

3

Vis bride

AP8152274

$0,08 Unit Price incl. VAT

4

BLOCCHETTO ARR.ALZAVAL

AP9150303

$22,29 Unit Price incl. VAT

5

Front valve control "5.90"

CM238602

Not Available

5

Front valve control "5.80"

CM238604

Not Available

5

Front valve control "5.85"

CM238603

Not Available

5

Commande soupapes AV

CM238601

$74,70 Unit Price incl. VAT

5

Front valve control "5.75"

CM238605

Not Available

5

Front valve control

855507

Not Available

5

Front valve control "5.70"

CM238606

Not Available

6

MOLLA RICH.ALZAV.ANT.

AP9150138

$33,05 Unit Price incl. VAT

6

Ressort

855515

$4,82 Unit Price incl. VAT

7

Rocker arm exhaust

AP9150096

Not Available

8

Rocker shaft

AP9150101

Not Available

9

Snap ring

006612

$1,55 Unit Price incl. VAT

10

Ball bearing D25x42x9

AP9150372

Not Available

11

CIRCLIPS S00664200

006642

$3,65 Unit Price incl. VAT

12

Vis bride M6X16

AP8152278

$1,77 Unit Price incl. VAT

13

INGR. DISTRIB.SUP Z 22

AP9150506

$302,79 Unit Price incl. VAT

14

Vis spéciale

AP9150507

$6,60 Unit Price incl. VAT

15

Chaîne de distribution

AP9150327

$28,35 Unit Price incl. VAT

15

Camshaft chain

AP9150133

Not Available

16

PATTINO FISSO

AP9150300

$7,69 Unit Price incl. VAT

16

Chain guide plate L177

AP9150011

$7,69 Unit Price incl. VAT

17

Chain tensioner sliding block

AP9150012

Not Available

18

Screw M6x12

AP9150231

$3,65 Unit Price incl. VAT

19

JOINT

847928

$0,42 Unit Price incl. VAT

20

TENDEUR

82650R

$34,52 Unit Price incl. VAT

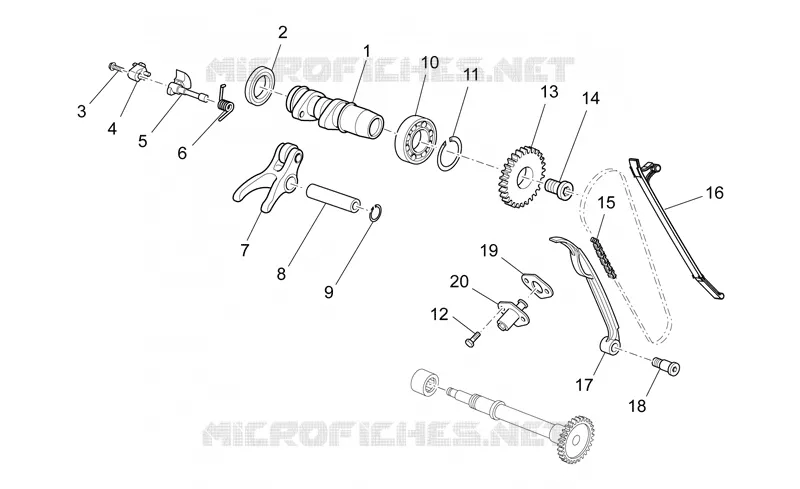

Find the detailed Front cylinder timing system APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
