1
Engine displacement
125
2
Model
LEONARDO
3
Year
1996
4
Trim
Leonardo
5
Parts Catalog
Crankshaft - valves
6
Parts Diagram
Parts Catalog
Acc. - Windshields
by
Special tools
Crankshaft - valves
1
2
3
4
5
6
7
8
9
10
11
11
12
12
13
13
14
14
15
15
16
17
17
17
17
17
17
18
18
18
19
1
Crankshaft cpl. 50 mm
AP0295594
Not Available
2
Racleur
AP0627110
$6,38 Unit Price incl. VAT
3
Racleur
AP0627110
$6,38 Unit Price incl. VAT
3
Thrust washer 32/50/1,4
AP0627112
$6,38 Unit Price incl. VAT
3
Racleur
AP0627111
$6,38 Unit Price incl. VAT
4
Transmission key 4x5
AP0246570
Not Available
5
Piston assy 61,95 mm
AP0295825
Not Available
5
Piston assy 61,97/98 mm
AP0295820
Not Available
5
Piston assy 56,37/38
AP0295585
Not Available
5
Piston assy 56,37/38
AP0295581
Not Available
5
Piston assy 56,37/38
AP0295580
Not Available
6
Piston ring set
AP0295589
Not Available
6
Piston ring set
AP0295584
Not Available
6
Piston ring set
AP0296704
Not Available
6
Segments - série
AP0295824
$93,14 Unit Price incl. VAT
7
Piston pin 15x10x43
AP0216210
Not Available
8
Circlip w. bent end
AP0245805
Not Available
9
Intake valve 20 mm
AP0253880
Not Available
10
Exhaust valve 18 mm
AP0253890
Not Available
11
Thrust washer 12,5/21,5/0,5
AP0227450
Not Available
12
Joint spi guide-soupape
AP0650120
$19,85 Unit Price incl. VAT
13
Valve spring
AP0239360
Not Available
14
Valve spring retainer
AP0253900
Not Available
15
Valve half-cone sk 4n
AP0253840
Not Available
16
Chain guide
AP0236350
Not Available
17
Tyre
0000000
Not Available
18
Loctite Anti Seize 50ml.15378
AP0297434
Not Available
19
Molykote G-N 50gr.
AP0297433
Not Available

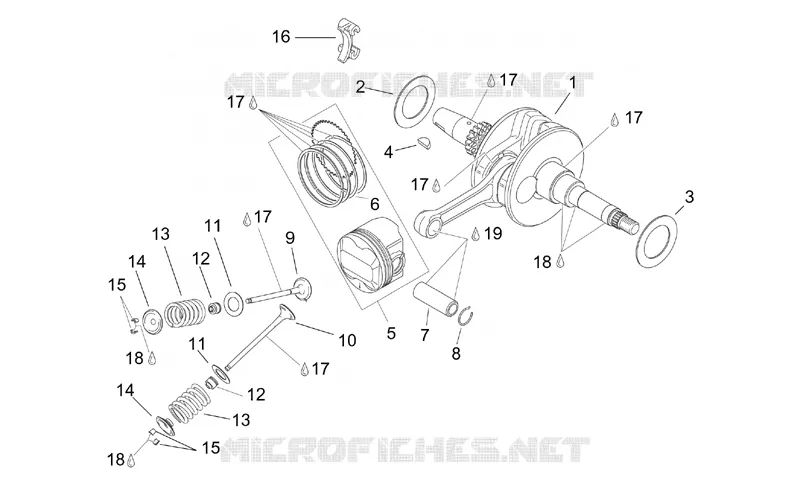

Find the detailed Crankshaft - valves APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
