1
Engine displacement
1000
2
Model
RSV4
3
Year
2017
4
Trim
RSV4 1000 Racing Factory L.E
5
Parts Catalog

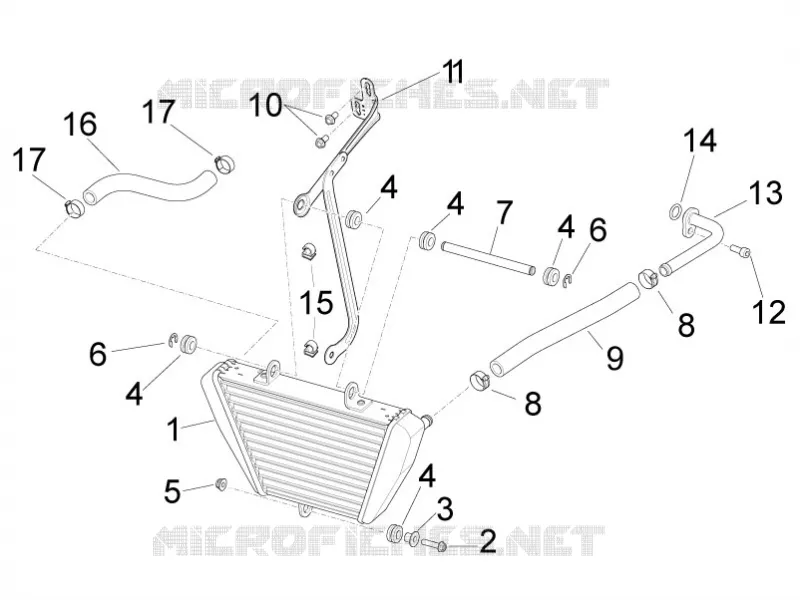

Oil radiator
6
Parts Diagram
Parts Catalog
Front master cilinder
by
Pad
Oil radiator
17
17
10
11
12
13
14
15
16
1
2
3
4
4
4
4
4
5
6
6
7
8
8
9
1
Radiateur huile
2B000897
$563,76 Unit Price incl. VAT
2
Vis bride
AP8152280
$0,25 Unit Price incl. VAT
3
"Douille en ""T"" *"
AP8221023
$0,93 Unit Price incl. VAT
4
Caoutchouc
AP8120030
$0,85 Unit Price incl. VAT
5
Ecrou autobloqu.
AP8152299
$0,34 Unit Price incl. VAT
6
Bague seeger
AP8121428
$3,65 Unit Price incl. VAT
7
Entretoise
858927
$3,69 Unit Price incl. VAT
8
Collier clic, blanc
AP8102349
$0,85 Unit Price incl. VAT
9
Oil pipe 12x19
AP8106389
Not Available
10
Vis bride
AP8152277
$0,25 Unit Price incl. VAT
11
Patte
2B001478
$25,82 Unit Price incl. VAT
12
Vis
AP8150137
$3,70 Unit Price incl. VAT
13
Tuyau refoulement
858489
$24,74 Unit Price incl. VAT
14
Joint torique
AP8144008
$3,65 Unit Price incl. VAT
15
Guide-câble noir
AP8201727
$0,34 Unit Price incl. VAT
16
Tuyau huile
2B001806
$66,71 Unit Price incl. VAT
17
COLLIER CLIC D.18.5
2B002198
$6,12 Unit Price incl. VAT

Find the detailed Oil radiator APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
