Engine displacement
1000
2
Model
RSV4
3
Year
2017
4
Trim
RSV4 1000 Racing Factory L.E
5
Parts Catalog
Front electrical system
6
Parts Diagram
Parts Catalog
Head cover
by
Front cylinder timing system
Front electrical system
7
6
5
4
4
3
2
1
22
21
20
19
18
17
16
15
14
13
12
11
10
8
9
27
26
25
24
23
1
Missing description
2D000385
$768,49 Unit Price incl. VAT
2
Vis bride
AP8152279
$0,51 Unit Price incl. VAT
3
Régulateur de tension
B043488
$314,97 Unit Price incl. VAT
4
Rondelle
AP8150179
$0,08 Unit Price incl. VAT
5
Vis
AP8152128
$0,34 Unit Price incl. VAT
6
"Douille en ""T"""
AP8121075
$3,65 Unit Price incl. VAT
7
Ecrou autobloqu.
AP8152299
$0,34 Unit Price incl. VAT
8
Klaxon
890979
$26,82 Unit Price incl. VAT
9
Vis bride
AP8152285
$0,51 Unit Price incl. VAT
10
Rondelle élastique courbe
AP8150376
$0,08 Unit Price incl. VAT
11
Relais 12V/30A
AP8224462
$14,17 Unit Price incl. VAT
12
Caoutchouc
AP8220283
$0,75 Unit Price incl. VAT
13
Support
890760
$0,51 Unit Price incl. VAT
14
Câblage principal
2D000302
$1 115,84 Unit Price incl. VAT
15
Vis
AP8152108
$0,16 Unit Price incl. VAT
16
Rondelle élastique courbe
AP8150182
$0,08 Unit Price incl. VAT
17
Ecrou carré
2B002443
$3,65 Unit Price incl. VAT
18
SUPPORT DE L'USB
2B002459
$39,20 Unit Price incl. VAT
19
PASSE CABLES
1B001591
$1,56 Unit Price incl. VAT
20
USB port
1D001378R
Not Available
21
Vis bride
AP8152279
$0,51 Unit Price incl. VAT
22
Douille;
AP8121991
$5,20 Unit Price incl. VAT
23
Support détecteur
858916
$1,62 Unit Price incl. VAT
24
Vis
GU98210612
$3,65 Unit Price incl. VAT
25
Rondelle 6,4x13x1,5
GU95005306
$0,16 Unit Price incl. VAT
26
Patte
2B002985
$20,60 Unit Price incl. VAT
27
Fixation
2D000348
$3,38 Unit Price incl. VAT

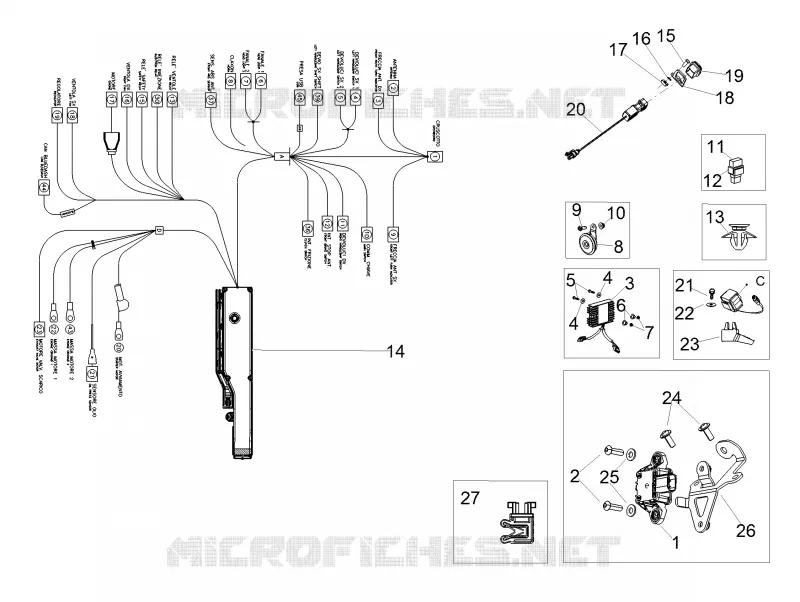

Find the detailed Front electrical system APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
