Engine displacement
125
2
Model
AF1
3
Year
1992
4
Trim
AF1 FUTURA
5
Parts Catalog
Electrical system
6

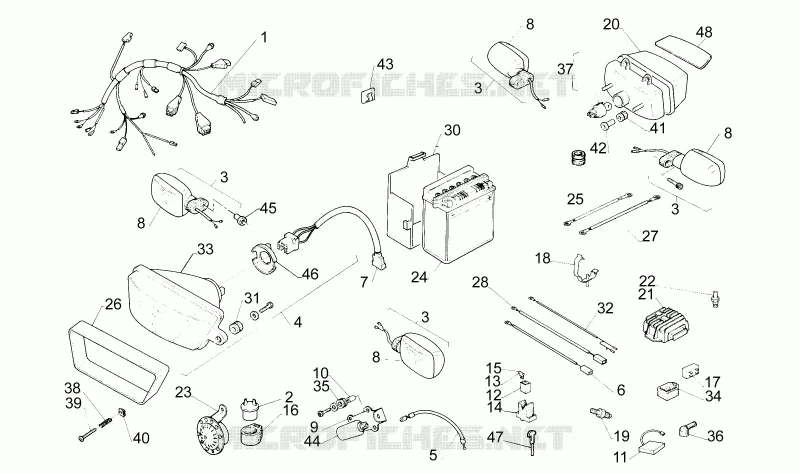

Parts Diagram
Parts Catalog
Exhaust unit
by
Handlebar - Controls
Electrical system
1
2
3
3
3
3
4
5
6
7
8
8
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
1
Main wiring harness
AP8112695
Not Available
1
Main wiring harness
AP8112807
Not Available
1
Main wiring harness
AP8112858
Not Available
2
Flasher unit
AP8124235
$14,18 Unit Price incl. VAT
3
RH front/LH rear turn indic.
AP8112497
Not Available
3
LH front/RH rear turn indic.
AP8112496
Not Available
3
Turn indicator
AP8112687
Not Available
4
Headlight
AP8112694
Not Available
5
Elect.rave valve cable
AP8114175
Not Available
6
Battery wiring-fuses
AP8112750
Not Available
7
Headlight wiring w/harness
AP8112770
Not Available
8
Turn indicator lens
AP8112626
Not Available
8
Turn indicator lens
AP8112756
$2,97 Unit Price incl. VAT
9
Solenoid support
AP8132928
Not Available
10
T bush
AP8121736
$3,65 Unit Price incl. VAT
11
Rave ECU
AP8112568
Not Available
11
Rave ECU
AP8112659
Not Available
12
Fuse block support
AP8112174
Not Available
13
Fuse 15A
AP8112176
$5,38 Unit Price incl. VAT
14
Rubber fuse box
AP8120584
Not Available
15
Fuse 7,5A
AP8112244
Not Available
16
Fuse block support
AP8120614
Not Available
17
Starter relay
AP8112523
Not Available
18
Cable-guide
AP8120582
$5,38 Unit Price incl. VAT
19
Stop switch
AP8124399
Not Available
20
Taillight lens
AP8112773
Not Available
20
Taillight lens
AP8112814
Not Available
21
Voltage regulator
AP8112744
Not Available
22
Thermistor
AP8101446
Not Available
23
Horn
AP8112413
Not Available
24
Battery GB9-B
AP8212631
Not Available
25
Ground-battery lead
AP8112375
Not Available
26
Front headlight decal set
AP8115438
Not Available
27
Ground-battery lead
AP8112525
Not Available
28
Relay battery wiring
AP8112529
$6,15 Unit Price incl. VAT
30
Battery holder
AP8131256
Not Available
31
Silent-block *
AP8120275
$0,55 Unit Price incl. VAT
32
Relay-motor cable
AP8112460
Not Available
33
Light assembly
AP8112793
Not Available
34
Rubber spacer *
AP8220201
Not Available
35
Rubber spacer
AP8120405
$5,38 Unit Price incl. VAT
36
Terminal cap
AP8120218
$5,38 Unit Price incl. VAT
37
Taillight
AP8112550
Not Available
37
Taillight
AP8112812
Not Available
38
Coil compress. spring *
AP8121798
Not Available
39
Screw
AP8221035
Not Available
40
Clip M5
AP8102375
$0,69 Unit Price incl. VAT
41
Rubber spacer *
AP8120223
$0,95 Unit Price incl. VAT
42
T bush *
AP8121790
$3,38 Unit Price incl. VAT
43
Black adh.cable guide
AP8120721
Not Available
44
Rave cont.solenoid
AP8112567
$56,70 Unit Price incl. VAT
45
T bush
AP8121795
$3,38 Unit Price incl. VAT
46
Lampholder
AP8112792
Not Available
47
Fuse block support
AP8112769
Not Available
48
Rear light decal set
AP8211875
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
