1
Engine displacement
50
2
Model
AF1
3
Year
1992
4
Trim
AF1 FUTURA
5
Parts Catalog

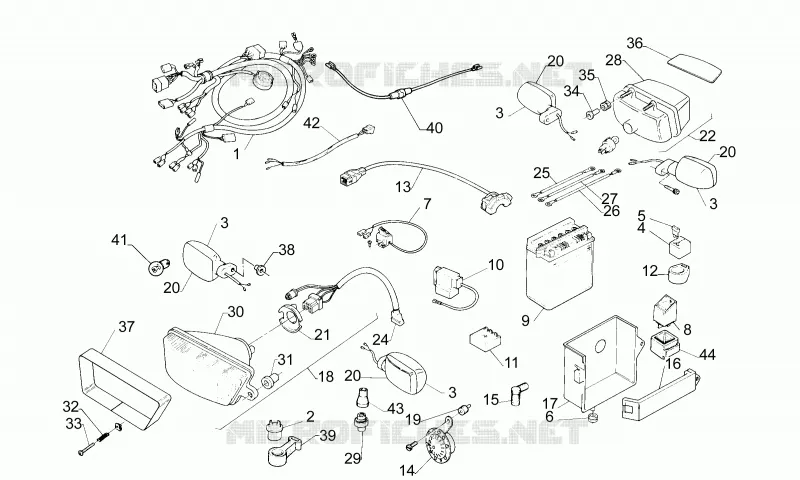

Electrical system
6
Parts Diagram
Parts Catalog
Exhaust unit
by
Handlebar - Controls
Electrical system
1
2
3
3
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
20
20
21
22
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
1
Main wiring harness
AP8212418
Not Available
2
Flasher unit
AP8112795
Not Available
3
Turn indicator
AP8112687
Not Available
4
Fuse and diode box
AP8212143
Not Available
5
Fuse 7,5A
AP8112244
Not Available
6
Rubber spacer
AP8120030
$0,85 Unit Price incl. VAT
7
Starter device
AP8212755
Not Available
8
Starter relay
AP8212085
Not Available
8
Starter relay
AP8112523
Not Available
9
Battery 12V-4Ah
AP8212642
Not Available
10
Transducer
AP8212474
Not Available
10
Coil
AP8212119
Not Available
11
Voltage regulator
AP8212121
$56,70 Unit Price incl. VAT
12
Fuse block support
AP8120614
Not Available
13
LH lights sel. w/wiring
AP8212763
Not Available
14
Horn
AP8212421
Not Available
15
Sparkplug cap
AP8220179
Not Available
16
Battery holder cover
AP8230121
Not Available
17
Battery bracket
AP8230791
Not Available
18
Headlight 50-90
AP8212308
Not Available
19
M6 male/female rubber anti-vibration damper
AP8120459
Not Available
20
Turn indicator lens
AP8112756
$2,97 Unit Price incl. VAT
21
Headlight lampholder
AP8212383
Not Available
22
Taillight
AP8112812
Not Available
24
Headlight wiring w/harness
AP8212368
Not Available
25
Ground-battery lead
AP8212203
Not Available
26
Relay-starter motor cable
AP8212423
Not Available
27
Relay battery wiring
AP8112459
Not Available
28
Taillight lens
AP8112814
Not Available
29
Thermistor
AP8222019
Not Available
30
Light assembly
AP8212374
Not Available
31
Silent-block *
AP8120275
$0,55 Unit Price incl. VAT
32
Coil compress. spring *
AP8121798
Not Available
33
Screw
AP8221035
Not Available
34
T bush *
AP8121790
$3,38 Unit Price incl. VAT
35
Rubber spacer *
AP8120223
$0,95 Unit Price incl. VAT
36
Rear light decal set
AP8211875
Not Available
37
Front headlight decal set
AP8115438
Not Available
38
T bush
AP8121795
$3,38 Unit Price incl. VAT
39
Beeper support
AP8212165
$0,77 Unit Price incl. VAT
40
Diodes cable
AP8212440
Not Available
41
Lamp
AP8112854
Not Available
42
Taillight wiring harn.
AP8212460
Not Available
43
Rubber spacer *
AP8120482
$5,38 Unit Price incl. VAT
44
Rubber spacer *
AP8220201
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
