1
Engine displacement
50
2
Model
AMICO
3
Year
1996
4
Trim
AMICO
5
Parts Catalog
Controls assembly I
6
Parts Diagram
Parts Catalog
Handlebar - Dashboard
by
Controls assembly II
Controls assembly I
1
2
3
4
5
6
7
8
9
10
11
12
13
1
LH rear brake control
AP8218136
Not Available
1
Rear brake lever complete
AP8218236
$21,87 Unit Price incl. VAT
2
Levier frein arrière nu;
AP8218274
$29,70 Unit Price incl. VAT
2
Rear brake lever
AP8218153
Not Available
3
screw
AP8118472
Not Available
4
Brake lever pin
AP8218114
Not Available
5
Brake lever U-bolt
AP8218154
$5,38 Unit Price incl. VAT
6
Commande starter
AP8212529
$9,18 Unit Price incl. VAT
7
Throttle+hand grip, blue
AP8218324
Not Available
7
Throttle+hand grip, black
AP8218238
Not Available
8
Bouton démarrage
AP8124208
$11,69 Unit Price incl. VAT
9
Bouton avertisseur
AP8124209
$10,76 Unit Price incl. VAT
10
Throttle cable
AP8214109
Not Available
11
Choke cable
AP8214108
Not Available
12
Poussoir clignotants
AP8212767
$17,07 Unit Price incl. VAT
13
2-way lightbutton
AP8212768
Not Available
13
3-way lightbutton
AP8212764
Not Available
13
2-way lightbutton
AP8212837
Not Available

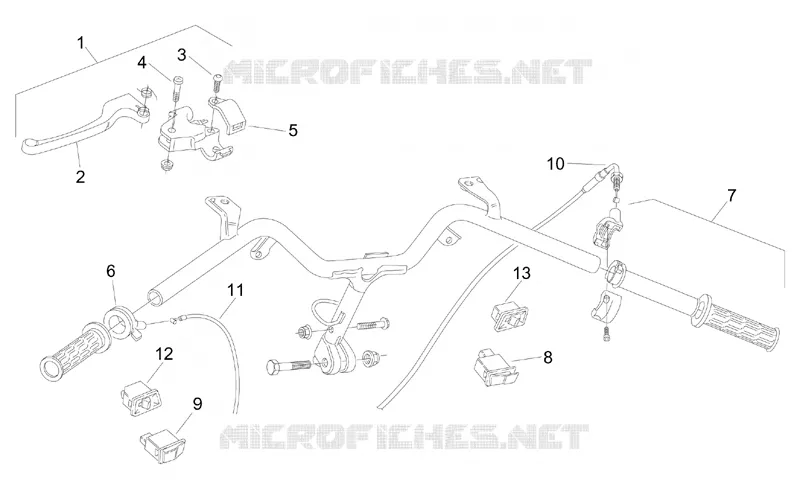

Find the detailed Controls assembly I APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
