Engine displacement
150
2
Model
LEONARDO
3
Year
1998
4
Trim
Leonardo
5
Parts Catalog
Starter motor
6
Parts Diagram
Parts Catalog
Rear body II
by
Saddle unit
Starter motor
1
2
3
4
5
6
7
8
9
10
11
12
1
Idle gear Z=54/17
AP0634460
Not Available
2
Spacer 10/17/11,2
AP0247930
Not Available
3
Coil ECU (blue)
AP0265407
Not Available
4
HT coil
AP0265417
Not Available
5
Pipe bougie;
AP0265242
$23,53 Unit Price incl. VAT
6
Spark plug CR8EVX
AP0297921
Not Available
7
Starter motor w/wiring
AP0295620
Not Available
8
Battery leads 550 mm
AP0265490
Not Available
9
Hex socket screw M6x12
AP0841331
Not Available
10
Molykote G-N 50gr.
AP0297433
Not Available
11
Lithium-Base grease 250gr.
AP0897330
Not Available
12
Tyre
0000000
Not Available

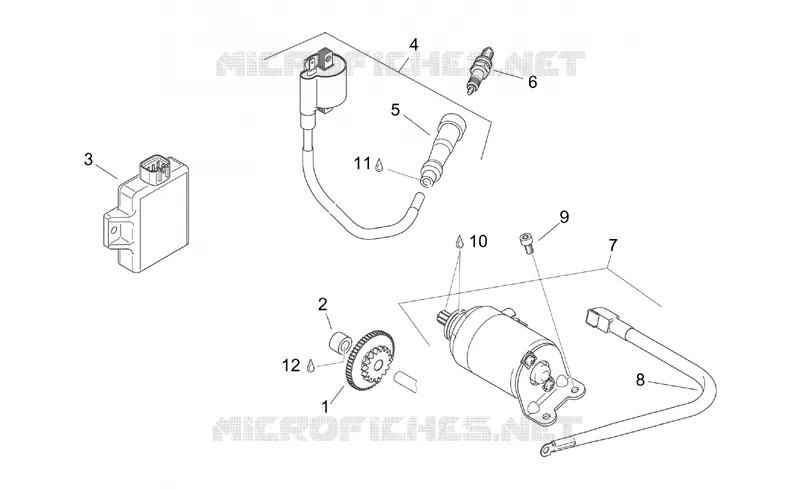

Find the detailed Starter motor APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
