1
Engine displacement
125
2
Model
ATLANTIC
3
Year
2006
4
Trim
Atlantic
5
Parts Catalog
Exhaust unit
6
Parts Diagram
Parts Catalog
Chain tensioner
by
Rear brake caliper
Exhaust unit
1
2
3
4
5
6
7
8
9
10
11
11
11
12
13
13
13
14
14
15
15
15
16
17
1
Exhaust pipe protection
AP8119819
Not Available
1
Exhaust pipe protection
AP8119623
Not Available
2
Manifold
AP8119760
Not Available
2
Manifold
AP8119820
Not Available
2
Manifold
AP8119763
Not Available
3
Collier;
AP8119734
$12,36 Unit Price incl. VAT
4
Bague;
AP8119739
$15,31 Unit Price incl. VAT
5
Silencer
AP8119789
Not Available
5
Silencieux
AP8119830
$335,77 Unit Price incl. VAT
5
Silencer
AP8119761
Not Available
6
Exhaust pipe gasket
AP8580066
Not Available
7
Nut
AP8121419
Not Available
8
Vis bride
AP8152298
$0,21 Unit Price incl. VAT
9
Rondelle inox
AP8163165
$3,70 Unit Price incl. VAT
10
Rondelle
AP8150382
$0,16 Unit Price incl. VAT
11
Vis
AP8150277
$0,42 Unit Price incl. VAT
12
Rondelle isolante
AP8163167
$3,65 Unit Price incl. VAT
13
Ecrou
AP8152350
$3,65 Unit Price incl. VAT
14
"Douille en ""T"""
AP8121114
$3,65 Unit Price incl. VAT
15
Rondelle
AP8150018
$0,34 Unit Price incl. VAT
16
Bague 5,3x8x7,1
AP8221036
$0,27 Unit Price incl. VAT
17
Caoutchouc
AP8144593
$4,62 Unit Price incl. VAT

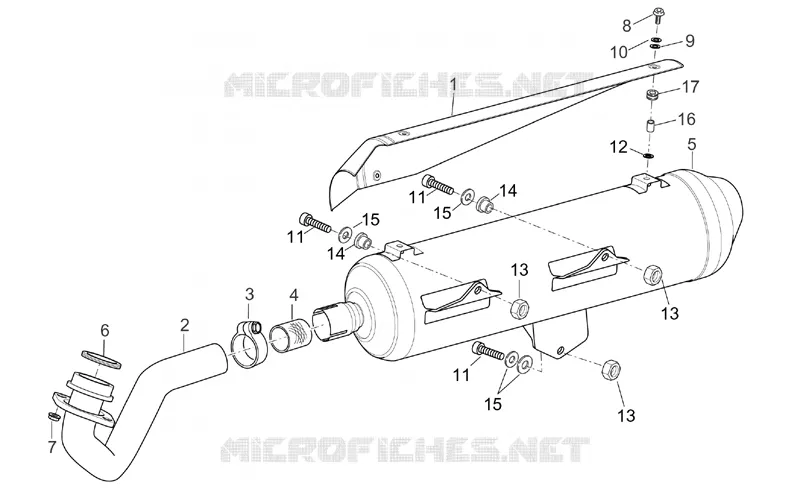

Find the detailed Exhaust unit APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
