Engine displacement
250
2
Model
ATLANTIC
3
Year
2006
4
Trim
Atlantic
5
Parts Catalog
Carburettor I
6
Parts Diagram
Parts Catalog
Rear shock absorber
by
Cylinder
Carburettor I
1
2
3
4
5
1
Screw w/ flange
AP8540002
Not Available
1
Screw w/ flange M6x25
AP8550173
Not Available
2
Hose clamp
AP8570079
Not Available
3
Carburettor cpl.
AP8575037
Not Available
3
Carburettor cpl.
AP8580262
Not Available
3
Carburettor cpl.
AP8176098
Not Available
3
Carburettor cpl.
AP8580265
Not Available
4
Intake manifold
AP8580082
Not Available
4
Intake manifold
AP8575043
Not Available
5
Carburettor gasket set
AP8580012
Not Available

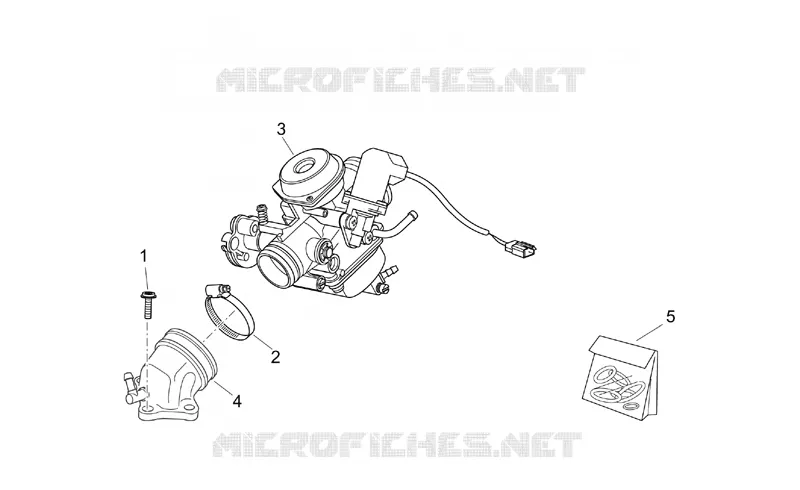

Find the detailed Carburettor I APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
