1
Engine displacement
125
2
Model
LEONARDO
3
Year
1999
4
Trim
Leonardo
5
Parts Catalog
Exhaust unit
6
Parts Diagram
Parts Catalog
Front wheel
by
Primary transm.
Exhaust unit
1
2
3
4
4
4
5
5
6
6
7
8
9
10
11
12
12
13
14
14
15
15
16
17
17
17
17
17
18
19
20
20
20
20
20
1
Silencer
AP8119433
Not Available
1
Silencer
AP8119442
Not Available
2
Prot. pot chromé
AP8119424
$54,75 Unit Price incl. VAT
3
Exhaust pipe gasket
AP8119355
Not Available
4
Nut M8
AP8150334
Not Available
5
Vis bride
AP8152342
$9,41 Unit Price incl. VAT
6
Silentbloc
AP8220346
$13,53 Unit Price incl. VAT
7
Exaust pipe support
AP8135680
Not Available
8
Vis bride
AP8152291
$0,85 Unit Price incl. VAT
9
Vis bride
AP8152288
$1,70 Unit Price incl. VAT
10
Ecrou autobloqu.
AP8152300
$0,34 Unit Price incl. VAT
11
Rondelle
AP8150018
$0,34 Unit Price incl. VAT
12
Vis bride
AP8152292
$3,65 Unit Price incl. VAT
13
"Douille en ""T"""
AP8120508
$3,65 Unit Price incl. VAT
14
Caoutchouc
AP8144065
$5,38 Unit Price incl. VAT
15
Rondelle thermofuge
AP8144064
$2,95 Unit Price incl. VAT
16
Entretoise
AP8120253
$3,65 Unit Price incl. VAT
17
Screw
AP8119490
Not Available
18
Acoustic insulation panel
AP8117144
Not Available
19
Ext.exhaust pipe protection
AP8119489
Not Available
20
Stainless washer 4,3x8
AP8119518
Not Available

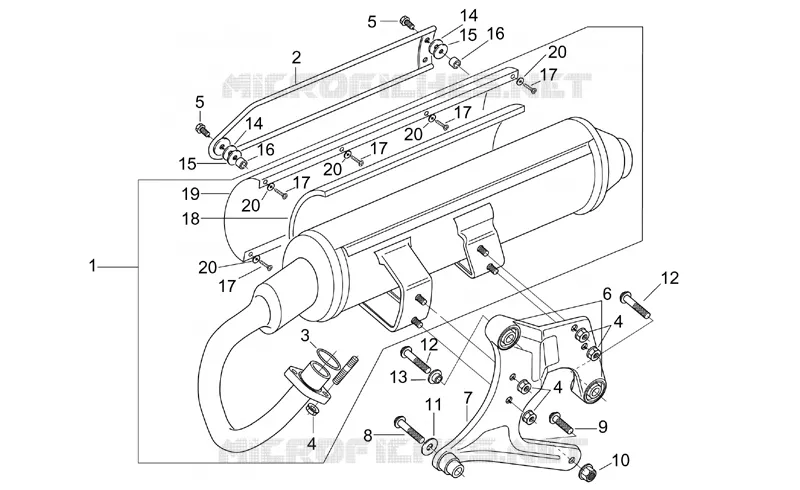

Find the detailed Exhaust unit APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
