Engine displacement
500
2
Model
ATLANTIC
3
Year
2006
4
Trim
Atlantic Sprint
5
Parts Catalog
Primary transm.
6
Parts Diagram
Parts Catalog
Starter motor
by
Headlight
Primary transm.
1
2
3
3
4
5
6
7
8
9
10
11
12
13
1
Drive half-pulley cpl.
AP8560199
Not Available
2
Ramp plate
AP8560242
Not Available
3
Slider
AP8560240
Not Available
4
KIT GALET
849914
$9,18 Unit Price incl. VAT
4
Pin roller
AP8560241
Not Available
5
screw
AP8560143
Not Available
6
V-belt
AP8560188
Not Available
7
Plain washer
AP8560129
Not Available
8
Belleville spring
AP8560127
Not Available
9
Nut m18x1,5
AP8560132
Not Available
10
Toothed pulley
AP8560171
Not Available
11
Plain washer
AP8560134
Not Available
12
Half-pulley assy., driving
849913
Not Available
12
Half-pulley assy., driving
AP8560200
Not Available
13
Spacer
AP8570003
Not Available

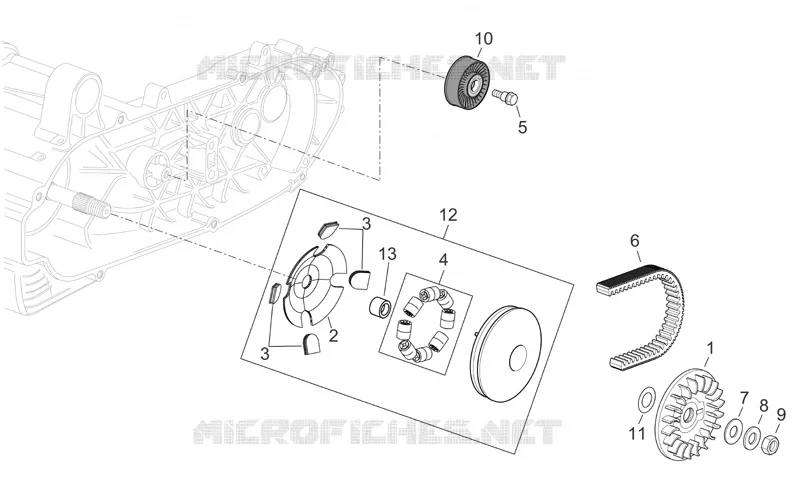

Find the detailed Primary transm. APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
