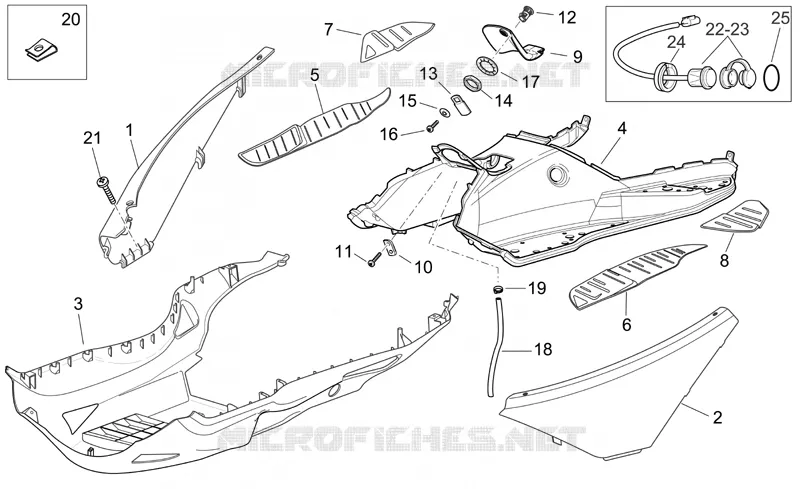

Central body FOR Atlantic Sprint FROM 2008

Central body

1

RH side cover, grey

AP8179761

$28,19 Unit Price incl. VAT

1

RH side cover, grey

AP8178998

Not Available

1

RH side cover, grey

AP8179717

Not Available

1

RH side cover, blue

AP8179771

Not Available

1

RH side cover, black

AP8184581

Not Available

1

RH side cover, blue

AP8269000

Not Available

2

LH side cover, grey

AP8179718

Not Available

2

LH side cover, black

AP8184582

Not Available

2

LH side cover, grey

AP8178999

$50,73 Unit Price incl. VAT

2

LH side cover, blue

AP8269001

Not Available

2

LH side cover, blue

AP8179772

Not Available

2

LH side cover, grey

AP8179762

Not Available

3

Underpanel, grey

AP8178850

$29,89 Unit Price incl. VAT

4

Floor panel, grey

856078

$36,63 Unit Price incl. VAT

5

RH mat, grey

AP8158378

$19,68 Unit Price incl. VAT

6

LH mat, grey

AP8158379

Not Available

7

RH mat, grey

AP8158934

$8,91 Unit Price incl. VAT

8

LH mat, grey

AP8158935

$8,91 Unit Price incl. VAT

9

Fuel filler lid

AP8178849

$5,21 Unit Price incl. VAT

10

Plate

AP8134799

$5,38 Unit Price incl. VAT

11

Self-tap screw 3,9x14

AP8150413

$0,08 Unit Price incl. VAT

12

Tank door lock

AP8104609

$25,82 Unit Price incl. VAT

13

Lever

AP8201620

$5,38 Unit Price incl. VAT

14

Low nut M19x1*

AP8152194

$1,10 Unit Price incl. VAT

15

Washer

AP8201748

$0,14 Unit Price incl. VAT

16

Screw M4x6

AP8201749

$0,16 Unit Price incl. VAT

17

Notched washer

AP8221312

$0,34 Unit Price incl. VAT

18

Fuel pipe 5,5x10

AP8120952

Not Available

19

Hose clamp D10,1

AP8101595

$0,32 Unit Price incl. VAT

20

Screw clip D5,5*

AP8201763

$3,65 Unit Price incl. VAT

21

Self-tap screw 3,9x14

AP8150413

$0,08 Unit Price incl. VAT

22

Driver intercom cable

AP8127390

Not Available

23

Passenger intercom cable

AP8127549

Not Available

24

Intercom cable bush

AP8163327

$3,65 Unit Price incl. VAT

25

O-ring

AP8119821

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
