Engine displacement
500
2
Model
ATLANTIC
3
Year
2004
4
Trim
Atlantic
5
Parts Catalog
Flywheel cover
6

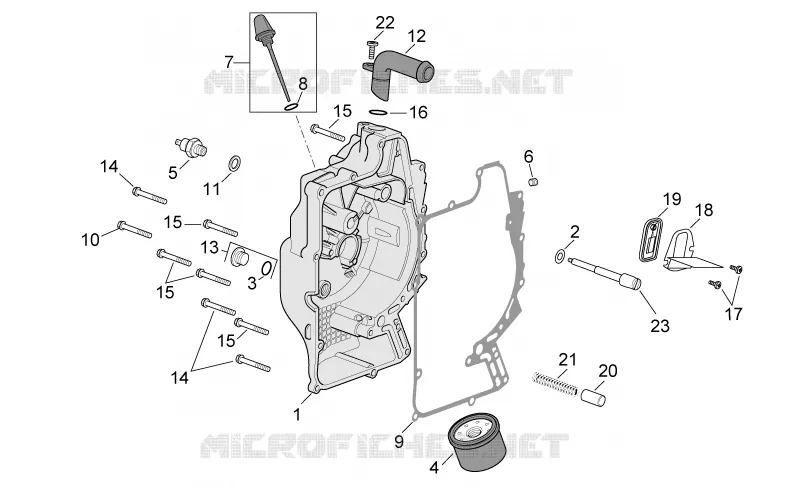

Parts Diagram
Parts Catalog
Head cover (Ext.Thermostat)
by
Water pump (Internal thermostat)
Flywheel cover
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
15
15
15
16
17
18
19
20
21
22
23
1
Flywheel cover cpl.
8710505
Not Available
1
Flywheel cover cpl.
8720885
Not Available
2
Flat washer 22x12,1x1
274246
$0,34 Unit Price incl. VAT
2
Washer
829557
$0,09 Unit Price incl. VAT
3
Gasket
AP8550417
Not Available
4
Oil filter cpl.
AP8560163
Not Available
5
Pressure sensor
AP8550512
Not Available
6
Cover M12x1,5
AP8560014
Not Available
7
Oil plug
AP8560039
Not Available
8
Gasket
AP8550417
Not Available
9
Gasket
AP8560047
Not Available
10
screw l=70
AP8550545
Not Available
11
Washer 16x10.5x2.5
AP8550331
Not Available
12
Oil breather pipe
AP8560118
Not Available
13
Cover
AP8560117
Not Available
14
Screw w/ flange
AP8113789
Not Available
15
screw M6x35
AP8550079
Not Available
16
O-ring
AP8560012
Not Available
17
Self-tapping screw
AP8560021
Not Available
17
Self-tapping screw
AP8570002
Not Available
18
plate
AP8560107
Not Available
19
Reed valve support
AP8560023
Not Available
20
Oil pressure valve
AP8560142
Not Available
21
Valve spring
AP8560140
Not Available
22
screw
AP8550546
Not Available
23
Water pump shaft assy.
828394
$41,73 Unit Price incl. VAT
23
Water pump shaft assy.
844438
Not Available
23
Water pump shaft assy.
872536
$29,47 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
