1
Engine displacement
750
2
Model
DORSODURO
3
Year
2010
4
Trim
Dorsoduro ABS
5
Parts Catalog

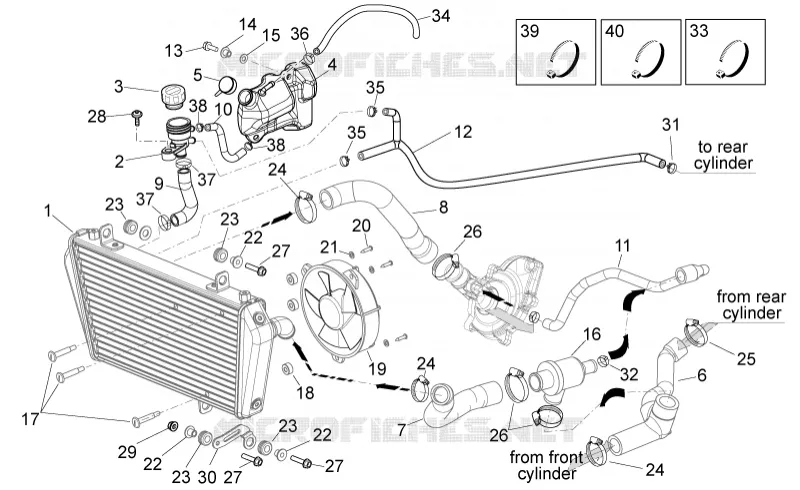

Cooling system
6
Parts Diagram
Parts Catalog
Valves cover
by
Engine
Cooling system
40
39
38
38
37
37
36
35
35
34
33
32
31
30
29
28
27
27
27
26
26
25
24
24
24
23
23
23
23
22
22
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
Water cooler
851596
Not Available
2
Filler cap
AP8144644
$5,38 Unit Price incl. VAT
3
Cover
AP8102615
$8,91 Unit Price incl. VAT
4
Expansion tank
856802
$50,59 Unit Price incl. VAT
5
Expansion tank plug
AP8104836
Not Available
6
Water pipe
851683
$35,16 Unit Price incl. VAT
7
Thermostat-cooler pipe
851598
$21,83 Unit Price incl. VAT
8
Cooler-pump pipe
851600
Not Available
9
Water rad.feed pipe
851599
$5,83 Unit Price incl. VAT
10
Fuel pipe d.7x11
890496
$18,39 Unit Price incl. VAT
11
Motor-pump valve tube
851602
$27,80 Unit Price incl. VAT
12
Breather pipe
860328
$38,79 Unit Price incl. VAT
13
Screw w/ flange M6x20
AP8152279
$0,51 Unit Price incl. VAT
14
T bush *
AP8221145
$3,65 Unit Price incl. VAT
15
Rubber spacer
AP8220366
$4,62 Unit Price incl. VAT
16
Thermostat valve set 85°C
834232
$33,54 Unit Price incl. VAT
17
Pin
AP8121464
$5,38 Unit Price incl. VAT
18
Spacer
AP8161083
$3,65 Unit Price incl. VAT
19
Fan, cpl.
AP8124930
Not Available
20
Screw 4,2x20*
AP8150270
$3,65 Unit Price incl. VAT
21
Washer 5,5x15x1,6
AP8150248
$0,16 Unit Price incl. VAT
22
T bush
AP8221023
$0,93 Unit Price incl. VAT
23
Rubber spacer
AP8120030
$0,85 Unit Price incl. VAT
24
Hose clamp
CM001924
$5,38 Unit Price incl. VAT
25
Hose clip 290x8,9
AP8201409
$3,65 Unit Price incl. VAT
26
Hose clamp
AP8104097
$5,38 Unit Price incl. VAT
27
Screw w/ flange M6x25
AP8152280
$0,25 Unit Price incl. VAT
28
Screw w/ flange M6x16
AP8152246
$0,27 Unit Price incl. VAT
29
Self-locking nut M6
AP8152299
$0,34 Unit Price incl. VAT
30
Water cooler support
853458
$2,39 Unit Price incl. VAT
31
Hose clip, green D11x6,6x1
AP8120446
$0,75 Unit Price incl. VAT
32
Hose clip D23,5x8*
AP8101743
$5,38 Unit Price incl. VAT
33
Hose clamp
AP8120657
$0,34 Unit Price incl. VAT
34
Fuel pipe 5,5x10
AP8120952
Not Available
35
Hose clamp
CM001914
$0,75 Unit Price incl. VAT
36
Hose clamp
AP8102738
$1,42 Unit Price incl. VAT
37
Hose clamp
CM001905
$1,38 Unit Price incl. VAT
38
Hose clamp
AP8102159
$1,02 Unit Price incl. VAT
39
Hose clip 20x8
AP8102786
$1,10 Unit Price incl. VAT
40
Hose clamp 12,5x8
AP8102239
$0,84 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
