Clutch pump for APRILIA RSV 1000 from 2007

Clutch pump

1

Brake oil tank complete

AP8133873

$15,98 Unit Price incl. VAT

2

Tank cap

AP8113553

$8,65 Unit Price incl. VAT

3

Oil tank plate

AP8154074

$10,00 Unit Price incl. VAT

4

Clutch command cylinder

AP8106381

Not Available

5

Clutch pipe

AP8106880

Not Available

6

Microswitch

AP8133668

$68,55 Unit Price incl. VAT

7

Clutch lever

AP8133667

Not Available

8

Clutch pump

AP8176193

Not Available

9

screw

AP8133597

$15,31 Unit Price incl. VAT

10

Bleed valve cap

AP8113070

$10,32 Unit Price incl. VAT

11

Air bleed valve

AP8133595

$6,15 Unit Price incl. VAT

12

Gasket

AP8106935

$11,06 Unit Price incl. VAT

13

Rear brake pump union

AP8133872

$12,30 Unit Price incl. VAT

14

Rubber pipe

AP8144151

Not Available

15

Hose clamp D10,1

AP8101595

$0,32 Unit Price incl. VAT

16

Lever pin

AP8133666

$4,00 Unit Price incl. VAT

17

U-bolt

AP8133665

$19,68 Unit Price incl. VAT

18

Gasket

AP8121915

Not Available

19

Hex socket screw M6x45

AP0241821

Not Available

20

Oil pipe screw

AP8133594

$8,01 Unit Price incl. VAT

21

Hex socket screw M6x12

AP8150537

$3,65 Unit Price incl. VAT

21

Screw w/ flange M6x12

AP8152277

$0,25 Unit Price incl. VAT

21

Screw M6x10

AP8152462

Not Available

22

Screw

AP8152461

Not Available

22

Hex socket screw M5x10

AP8150538

$4,32 Unit Price incl. VAT

22

Screw w/ flange M5x15

AP8152273

$0,16 Unit Price incl. VAT

23

Self-locking nut M5

AP8152306

$3,65 Unit Price incl. VAT

23

Self-locking nut

AP8152465

Not Available

23

Cap nut

AP8150539

$3,65 Unit Price incl. VAT

24

Washer d.5,2

AP8152467

Not Available

25

Curved spring washer 5,3x10x0,5

AP8150272

$3,65 Unit Price incl. VAT

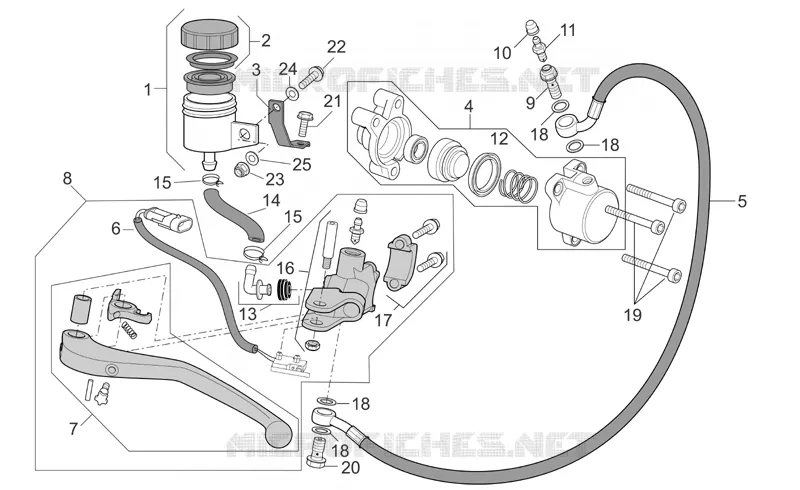

Find the detailed Clutch pump APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
